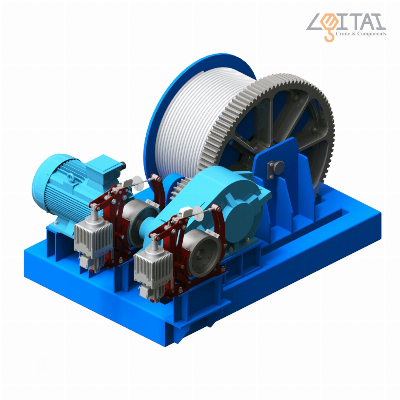

10t Jk Fast Speed Construction Winch for Mining

10t JK Fast Speed Construction Winch Product DescriptionJM, JK series winch is commonly-used lifting equipment; it can work separately or co-operated with other equipments, or be a part of complex large scale lifting or traction equipment. The winch have a high optimization for general use, can be used to lift heavy objects or for traction. It is necessary equipment for construction sites, factories and mines, transportation, storage terminals and installation projects.----------------------------------------------------------Design and Manufacturing Feature--------------------------------------------------------------1. Structure The winch was made up of base, reducer, flexible coupling, hydraulic brake, drum, open big gear ring, pinion, controller, resistor, motor, etc.2.  Operating principle2.1 After power connected, motor, hydraulic (electromagnetic) clutches are simultaneously turned on, this time to open the brake shoe, motor starts passed through flexible coupling to reducer, through the reducer, the pinion gear drive big gear and drum, so as to achieve a lifting, pulling purposes.2.2 Roll operation (positive, reverse) and stop is controlled by the brakes and the master controller, when motor started the brake shoe also open, so that the drum rotation; When disconnecting the power, the brake through the spring pressure, will hugged quickly the braking functioning reel, stop the drum rotation to ensure safe and reliable. (Note: The winch at work, the master controller must be in place, otherwise it will cause the motor output torque not enough, winch weakness; prolonged operation will burn resistor or motor).Product ParametersConstruction WinchCapacity ( t )2356.3Max.Lifting Speed( m/min )JM1~101~100.8-80.8-8JK2~202~201.6-161.6-16Max.Wire Rope Capacity ( m )160180200200Work DutyM4/1AmM4/1AmM4/1AmM4/1AmWire Rope Diameter ( mm )φ12φ16φ20φ22Drum Diameter ( mm )φ273φ325φ402φ425Motor ModelJMYZP132M1-6YZP132M2-6YZP160M-6YZP160L-6JKYZP160M-6YZP160L-6YZP180L-6YZP200L-6Motor PowerJM45.57.511JK7.5111522  Capacity ( t )81012.516Max.Lifting Speed( m/min )JM0.8-80.8-80.8-80.8-8JK1.6-161.6-161.6-161.6-16Max.Wire Rope Capacity ( m )200300300300Work DutyM4/1AmM4/1AmM4/1AmM4/1AmWire Rope Diameter ( mm )φ24φ26φ30φ34Drum Diameter ( mm )φ500φ560φ630φ680Motor ModelJMYZP160L-6YZP180L-6YZP200L-6YZP200L-6JKYZP200L-6YZP225M-6YZP250M1-6YZP250M2-6Motor PowerJM11152222JK22303745Detailed Photos   Company Profile   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
