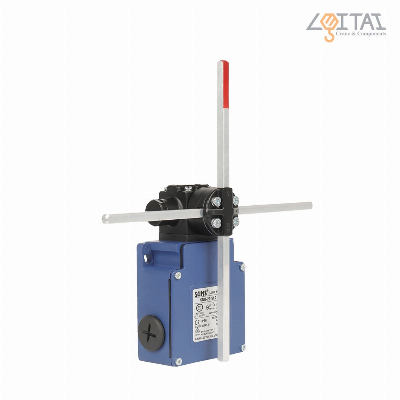

Electric Parts Cross Suns Limited Switch for Travelling IP66

Suns brand Cross Limited Swtich for Traveling   ModelAlu Rod Length(mm)RotationSNB-27-SL2-N-180200180SNB-27-SL3-N-180300180SNB-27-SL2-N-360200360SNB-27-SL3-N-360300360  Conforming Standard to ProductsIEC 947-5-1, EN 60 947-5-1, VDE 0660-200Conforming Standard to AssembliesIEC 204-1, EN 60 204-1, NF C 79-130Resistance to Vibration25 gn(10 - 500Hz) conforming to IEC 68-2-6Resistance to Shock50 gn conforming to IEC 68-2-27Electric Shock ProtectionClass I conforming to IEC 536 and NF C 20-030Ambient air temperatureOperation : - 25 ~ 70ºC―    Storage: - 40 ~ 70ºCIP ClassIP66Mechanical Durability2 million Op. cyclesTorque for Tripping0.5 NmTorque for Positive Opening0.75 NmMaximum Actuation Speed1.5m/sRated Operational CharacteristicsAC-15 ; A300 or Ue = 240 V, Ie = 3 ADC-13 ; Q300 or Ue = 125 V, Ie = 0.55 Aconforming to IEC 947-5-1 Appendix A,Rated Insulation VoltageUi = 600 V degree of pollution 3 conforming to IEC 97-1,EN60947-5-1Rated Impulse Withstand VoltageU imp = 6 kV conforming to IEC 947-1, IEC 664Positive OperationN/C contacts with positive opening operation conforming to IEC 947-5-1 , EN 60 947-5-1Short-circuit Protection10A cartridge fuse type gG(gl)Conduits1/2NPT, M20×1.5, PG13.5CablingScrew and captive cable clamp terminals.Clamping capacity, min.: 1 x 0.34mm2, max.: 2 x 1.5mm2 or 1 x 2.5mm2 depending on contact, Screw tightening torque max.:1.2NmWeight0.55kg    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
