Hydraulic Marine Knuckle Boom Crane Deck Boat Lifting Cranes

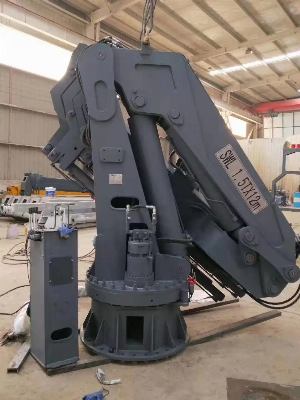

Hydraulic Marine Knuckle Boom Crane Deck Boat Lifting CranesCargo Marine Handling Port CraneThe hydraulic crane adopts the hydraulic components imported from Europe and America: the crane adopts the full hydraulic drive, which has the characteristics of stable operation, adjustable speed level, 360 degree turning, compact structure, combination of electro-hydraulic control and manual control, easy operation and use.1. The compact structure of Marine folding crane can reduce the area occupied on the platform and on board.2. At the same time, the operation of the boom is flexible, and the hook can also reach the sea surface when the wire rope is not discharged.3. It can be used for loading and unloading precision instruments, etc. It is widely used in fishing boats, engineering ships, military ships and special ships. Technial Specification:ItemUnitParameterCrane model--CQNE25Max. Lifting Capacitykg25000Max. Lifting MomentT.M62.5Recommend PowerKw50Max. Oil Flow of Hydraulic SystemL/min80Max. Pressure of Hydraulic SystemMPa31.5Max. Outreachm15.45Oil Tank CapacityL300Crane Weightkg7945Installation Spacemm2500Rotation Angle°360°All RotationMain Features And AdvantagesFrom the cylinder, the fuel tank, crane, hoisting mechanism and the amplitude bodies, lifting, rotating, hydraulic luffing are driven from the flexible and reliable action, easy to operate, uses a wide range of  characteristics such as lifting items ship ldeal for lifting equipment. Suitable for operations at sea.Cargo Marine Handling Port Crane1. Compact design2. Small footprint3. Delivered as one complete unit ready for installation to vessels4. Easy access for periodic maintenance, service and repair5.24 hours after-sales service support. Configuration OptionsStandard  equipment#  360 C* continuous rotation.#  -10 C*----+45 C* working temperature.#  certified A36 & S690 steel structure.#  pedestal ready for mounting or weld to vessel main structure .#  stainless steel grease nipples.#  precise step less speed control.#  simultaneous operations of 2 or more function.#  emergency for hydraulic stop device.#  visual and audible warning alarm.Optional equipment#  lower temperature package up to -40 C*.#  certification for personal lifting.#  wireless  remote  control#  operator cabin with AC and heating.#  ATEX package and certification.#  man riding winch.#  centralized grease system.#  multiple setting of load limiting system.#  automatic overload protection system .#  warning and working lights.#  load indicator system.#  other upon request.Please provide following necessary information,so we can quote right Model crane.1. What kind of marine crane do you need(stiff boom crane, telescopic boom crane knuckle boom crane knuckle telescopic crane or folding boom crane )2. Crane SWL requested(___ T/___M)3. Max. working radius of the crane(___M)4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)5. If you have any other special request for the crane, please advise us, we will design the suitable model for you.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
