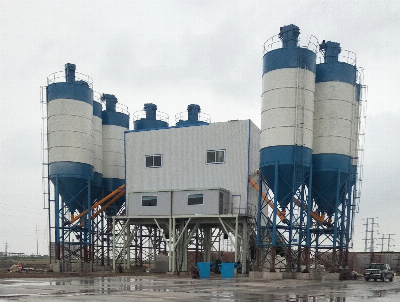

Large Huge Capacity Concrete Batching Plant

  Main technical parameters: Theoretical productivity: 300m³/h (normal concrete) Mixer nominal capacity: 5m³Power: 320kwWith their quick and easy installation, modular container-design mixing plants (available with skip or conveyor loading) have the ability to produce large quantities of concrete while using a minimal area of land.The durable container modules offer speedy setup and commission times, while the robust structure of the plant itself requires a minimal foundation - elements that contribute to economical plant relocations. This type of plant is fully enclosed, reducing dust and noise emissions and protecting its contents from harsh environmental factors.*Quick and easy installation*Quick and easy relocation*Flexibility in the configuration*Minimum foundation cost   Technical parameter  ItemUnitParameterbatching machine model PLD8000QD-ivbatching machine storage hopper volumem34×25aggregate scale maximum weighing valuekg4×6000cement scale maximum weighing value kg3000fly ash scale maximum weighing value 1000water scale maximum weighing valuekg1400liquid additive scale maximum weighing valuekg150main machine unloading heightm4.1machine mass t90contour size (length × width × height)m50.8×20×21.3loading mode  belt type  metering accuracy aggregate%±2 cement%±1fly ash%±1water%±1liquid admixtures%±1note: 1. Cement Silo and screw conveyor are optional parts, its capacity and size can be matched according to actual needs. 2. The shape, size and weight are for reference only and are determined according to the actual configuration.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
