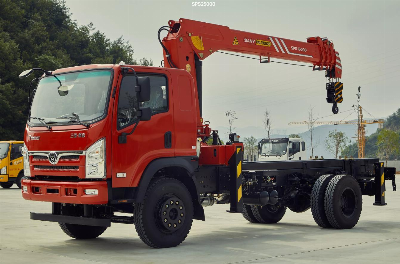

Palfinger Loader Crane Sps12500 5 Ton Straight Boom Crane

Product DescriptionSPS12500 5 Ton Stiff Boom Crane Palfinger boom crane for saleFeatureERGONOMIC DESIGNThroughout the design phase SANYPALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operationINTEGRATED ELECTRIC SYSTEM1.Robust, reliable, and service friendly design2.Network of modular components connected through standardized interfacesADVANCED PROPORTIONAL HYDRAULIC SYSTEMSensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.HIGH PRESSURE AND RETURN FILTERAll the series are equipped with high-pressure filter as standard configuration, it protects the hydraulic components of the crane and prolongs the service life of the hydraulic systemHIGH DENSITY PAINT SYSTEM1.Demonstrates superior performance2.Long-term UV-resistance3.Attractive aestheticsProduct ParametersModelSPS25000SPS20000SPS12500Max Lifting Capacity11T9T5.6TBoom Length18.1m18.1m11.9mOverall Weight4.13T4.11T2.37TRated Lifting Weight10T8T5TRated Lifting Moment25t.m20t.m12.5t.mMax Outreach17.7m17.7m11.6mMax Lifting Height20.1m20.1m13.6mLength of The Basic Boom5.3 m/5.3m/4.3 m/Length of The Fully Extended Boom18.1 m/18.1m/11.9 m/Numbers of The Boom4 or 5/4 or 5/3 or 4/Range of The Boom Lifting Angle0~75°/0~75°/0~75°/Slewing AngleEndless/Endless/Endless/Outrigger Span5.6 (m)/5.6 (m)/5.1 (m)/Recommended Volume for the System60-90 L/min/45-70 L/min/35-50 L/min/Operating ModeHigh seat or Lower seat/Lower seat/Lower seat/Detailed PhotosCompany Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
