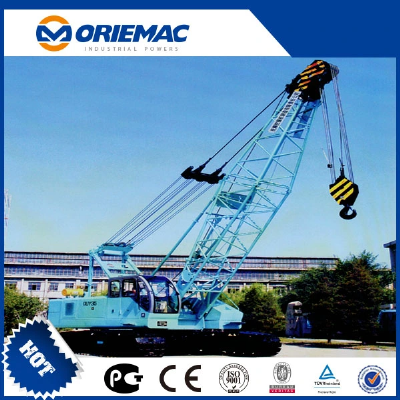

High Quality Fuwa Lifting Equipment 70 Ton Hydraulic Tracked Crawler Crane Xgc70

High Quality Fuwa Lifting Equipment 70 Ton Hydraulic Tracked Crawler Crane XGC70 The hydraulic components are imported from Rexroth, and the performance is more superiority Extendable track frame, compact outline, small swing radius, making it convenient to transport The main, aux. Winch is equipped with free fall function, saves fuel consumption, and boosts work efficiency. The main, aux. Winch and derricking is equipped with mechanical brake, and better safety performance The The easily damaged and consumable structural parts are self-made, . And special structure design of FuWa, makes maintenance more convenient. Most part of whole crane surface adopts no-dust baked lacquer automatic assemble line painting.   Item  Unit   Main boom m 12~54Jib length m 9~18  m 45+18  º 30~80Working speedWire speedLifting(4th floor) m/min  80/40   130/65(lifitng)  Dropping(4th floor) m/min  80/40   130/65(lifitng)  Lifting arm lifting m/min 58  Lifting arm dropping m/min 58Steering speed r/min 3.7  Travelling speed km/h 1.2  10 12  20t   14.3t (lifting)  Gradeability %30  Engine and rated power KW/r/minChina Cummins 6CTA8.3-C240 182KW/2000r/min &Imported Cummins QSL-9  209KW/2100 r/minMachine weight t69Pressure MPa0.078  Counterweight t24/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
