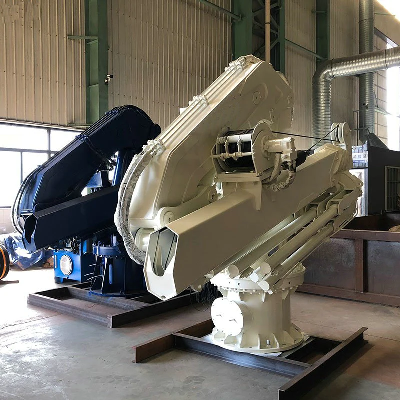

2~20 Ton CE Certification Hydraulic Telescopic Boom Crane

The deck crane is a kind of ship's hoisting equipment usually set in the cabin deck which contents high technology of electricity, liquid, machine integration of deck. With the advantage of easy manipulation, impact resistance, good performance,safety and reliability, it can make a good use of the limited space of port, yard and other places. It has high working efficiency and good adaptability to the goods, especially for the dry bulk cargo handling.  Main Features and advantages:Easy maintenance at all situationSelf contained unit with integrated hydraulic power packFail-safe brakes on all movementsFully enclosed and equipped operator cabin with air conditionThe variable speed hoist will automatically adjust to the highest possible speed for the appropriate loadBase on many year's design and fabrication experience of crane and other similar equipmentSuitable for all kinds of ships and low power consumption and high efficiencyWelded and high strength box boom for easy maintenanceWith Many safety protection devices---hook up limiter and overload limiter, emergency stop button    Advanced development analysis means make sure design is very reliable.The structure design is more compact,lighter self-weight, greater load ratio , the whole line is reasonable, beautiful.Higher lifting capacity with four connected bar mechanism.Two folding arm can tilt upward(negative elevation angle), so that the crane can enter the lower working space for lifting.  The second section knuckle boom cylinder with reverse arrangement and adopt the flange connection balance value with higher reliability to reduce the leakage point. There is no oil pipe on the oil cylinder tube to reduce the possibility of damageRack cylinder adopted inclined arrangement, boom in folding state to make full use of space , compact overall structure.lower center of gravity and vehicle driving stability.  TypeRated load(SWL)Max.workradiusLifting speedM/minSwing speed(r/min)Amplitude time(m)Lifing height(m)Rotary range(°)Allowinginclination(trim.heel)Power(KW)QY0.55-121516030360°2°/5°7.516-121516030360°2°/5°111.56-141516030360°2°/5°1128-161516030360°2°/5°1538-1813-150.87030360°2°/5°22510-2012-150.758030360°2°/5°37812-2010-150.7510035360°2°/5°551012-2010-150.710035360°2°/5°751512-2210-150.611035360°2°/5°902016-2510-150.612040360°2°/5°125After-Sales Service:Our after-sales service provide:1.14 months warranty when products leave the factory, or 12 months warranty after installation 2. 2 years spare-parts provided for better maintenance.3.Professional technical staffs provide installation, commissioning and training services.4.Delivery with English user manual, parts manual, product certification and other relevant certificates.5.Technical advisory for any time and Engineers available to service machinery overseas.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
