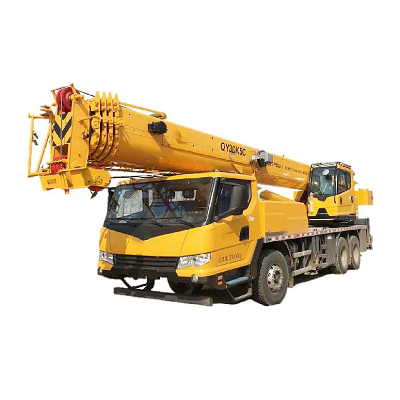

China 35ton Crane Qy35K5-I 25ton 25t 30ton 35ton Mobile Truck Crane

Key Specifications/Special Features:Wide cabFive-segment U section boomSingle cylinder luffing and double-winchManual mechanical controlSpacious and luxury streamline cabU boom systemConstantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.Compact boom head Extend the jib length, which can extend the working radius to the most.Hydraulic pipelineThe pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.Operating cab It has large space and wide views. The control levers and instrument buttons are at hand.Torque limiterThe colorful LCD display of the torque limiter can shows all the important operating information.EngineReasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.DimensionsUnitQY35K5Overall lengthmm12620Overall widthmm2500Overall heightmm3350Weight  Total weight in travelkg36930Front axle loadkg12330Rear axle loadkg24600Power  Engine model SC9DK320Q3Engine rated powerkW/(rpm)235/2200Engine rated torqueNm/(rpm)1250/1400Travel  Max travel speedkph75Min turning diameterm19.5Min ground clearancemm260Approach angle°17Departure angle°15.7Max grade ability%40Fuel consumption for 100kmL30Main performance  Max rated total lifting capacityT35Min rated working radiusmm3000Turning radius at turntable tailm3.055Max. lifting torquekN.m1200Base boomm10.5Fully extended boomm39.6Fully extended boom+ jibm54.6Longitudinal outrigger spanm5.35Lateral outrigger spanm6Working speed  Boom luffing times68Boom full extension times≤155Max swing speedrpm≥2.5Max speed of main winch (single rope)m/minute≥130Max speed of aux winch (single rope)m/minute≥130  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
