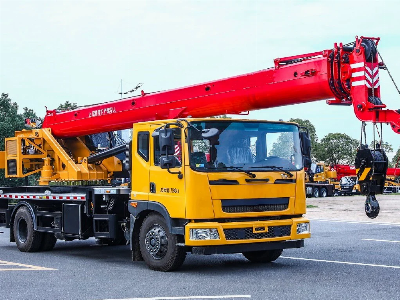

High Quality New Stc300 Pickup Truck Crane Hydraulic with Manufacturers

High Quality New Stc300 Pickup Truck Crane Hydraulic with ManufacturersProduct DescriptionEfficient & Unique Hydraulic SystemTriple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design guarantees smooth braking operation.Intelligent Electronic ControlSelf-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.The Load Moment LimiterEquipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.More Safe DevicesMain and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation. ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg30000 Max.    load moment of basic boomkN.m1132 Max.    load moment of main boom(fully extended)kN.m617.5 Max.    load moment of basic boomm11.1 Max.    lifting height of main boomm40.5The    parameters do not include deflection of main boom and jibMax.    lifting height of jibm48.5Working    speeds              Max.    hoist rope speed(Main winch)m/min120At    the 4th  layerMax.    hoist rope speed(Auxiliary winch)m/min100At    the 2nd   layerBoom    demrricking up times40 Boom    demrricking up times80 Slewing  speedr/min0 - 2.2 Driving     parametersMax.    driving  speedkm/h78 Max.    gradeability%37 Min    turning diameterm≤22 Min.  ground clearancemm220 Oil    consumption per hundred kilometersL35 MassDeadweight    in driving conditionkg32000 Complete    vehicle kerb masskg31870 Front    axle loadkg7000 Rear    axle loadkg25000 DimensionsOverall    dimensions(L×W×H)mm12900×2500×3465 Longitudinal    distance between outriggersm5.36 Transversal    distance between outriggersmFully    extended:6.10 m     Intermediately extended:4.20 m Tail    slewing radiusmm3385 Main    boom lengthm10.6    - 40.0 Boom    angle°-2    - 80 jib    lengthm8.0 Offset°0,30Product photosCompany information/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
