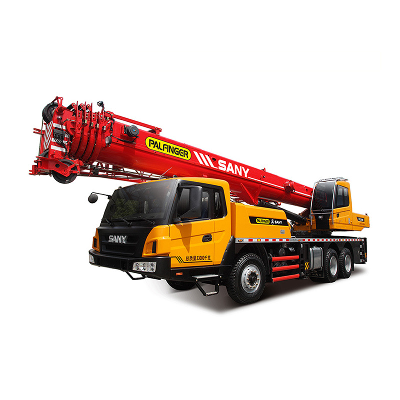

Palfinger Stc250t5 25 Ton Mobile Truck Crane with 41m Boom

Palfinger STC250T5 25 Ton Mobile Truck Crane with 41m Boom  Product DescriptionModelSTC250E5STC250C5STC250T5Max. lifting capacity25 ton25 ton25 tMax. lifting height49 m49.5 m49 mMax. lifting moment1063 kN.m1063 kN m1063 kN mBoom length40.5 m41 m41 mMax. gradeability45%45%42%Max. travel speed90 km/h85 km/h90 km/hMax. counterweight3.49 t3.3 t5.6 tDriving weight33 ton32.7 ton32.7 tonDimension12870*2500*3650 mm12760*2550*3550 mm12760*2550*3550 mmEngine power220/2100 kW/r/min220/2100 kW/r/min213/2100 kW/r/minMax. hoist rope speed135 m/min (main winch)145 m/min (main winch)135 m/min (main winch)Outrigger span/5.18*6.4 m5.18*6.4 mProduct PicturesMobile cranes generally operate a boom from the end of which a hook is suspended by wire rope and sheaves. The wire ropes are operated by whatever prime movers the designers have available, operating through a variety of transmissions. Steam engines, electric motors, and internal combustion engines (IC) have all been used. Older cranes' transmissions tended to be clutches. This was later modified when using IC engines to match the steam engines' "max torque at zero speed" characteristic by the addition of a hydrokinetic element culminating in controlled torque converters. The operational advantages of this arrangement can now be achieved by electronic control of hydrostatic drives, which for size and other considerations is becoming standard. Some examples of this type of crane can be converted to a demolition crane by adding a demolition ball, or to an earthmover by adding a clamshell bucket or a dragline and scoop, although design details can limit their effectiveness. Company Information/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
