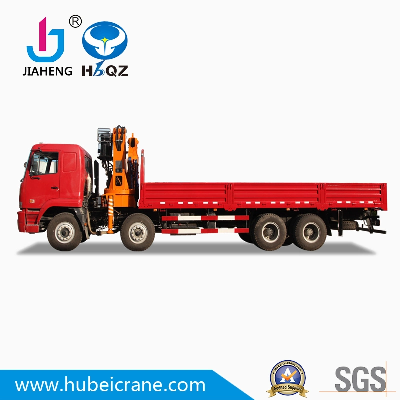

HBQZ China New 16 Tons Foldable Arm Crane Construction Lifting Machinery (SQ330ZB4)

Hubei Jiaheng Technology Co., LtdHubei Best Crane Co., Ltd(Truck Cranes Professional Manufacturer)Web: hbjh2013.en.made-in-china.comOur advantages:1).Use HG70 international standard high-strength steel to reduce the weight of crane. 2).The boom of the knuckle crane is used hexagonal structure,reducing the lateral. 3).Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts     to ensure the micro-mobility,security and stability. 4).Parker brand oil seal and gasket for hydraulic pump. 5).Brand scanreco remote control operate from Sweden. 6).Our factory is SGS certificated. Product Show:Parameters:Model #SQ330ZB4 /knuckle crane 16.5ton at 2mMax Liftingmoment330Kn.mMax Lifting Capacity (kgs/m)16500/2.05400/62800/9.62200/11.4Max Lifting Height14.5mMax Working Radius11.4mBoom Section4 stagesRotation Angle360°All RotaionRated Working Pressure28mpaOiltank Capacity120LRelated Oil Flow60 L/minOutrigger Span2330-5630mmOutrigger4 ,adjustable, Hydraulic operating.Crane Weight4800kgInstallation Space1470mmSwing typePlanetary gear reductionSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.OptionsAux.winch,Aux.Boom,Remote controlMaterialHG785Truck for referenceTruck brandDongfeng (other truck brand can be customized)Cabin Driving type: 6x4, Left hand drive (Right hand drive type can be customized)Color is optionalVehicle Main DimensionsOverall size (L x W x H)11950x2490x3850mmWheel base5850+1350 mmCargo Body8400*2300*550mmWeight in KGSGVW25000 kgTare weight 16250kgFront axle loading capacity2 x 2500 kgRear axles loading capacity2 x27500 kgEngine TypeDiesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power240HP (177kw) Max Torque1000N.m Emission standardEuro VMax Speed102 km/hGearboxmanual gearbox with 9 forwards & 1 reverses, with PTOTire 11.00R20   11 pieces including one spare tire Hubei Jiaheng Technology Co., LtdHubei Best Crane Co., Ltd(Truck Crane Professional Manufacturer)Web: hbjh2013.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
