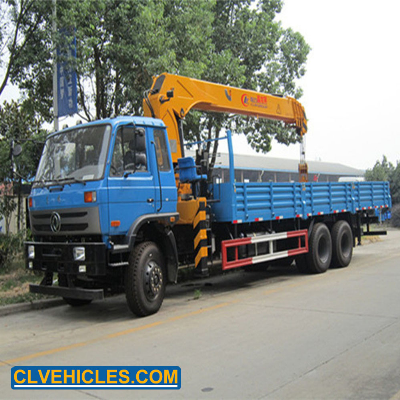

Good Price 6X4 10ton 3 Straight Arm Boom Crane Truck

PARAMETERVehicle Upper bodySpeed 100 km/hCrane modelSQ3.2SA1Passenger2Crane typeTelescopic boomWheelbase3360Boom arm2 (including main boom)Tyre7.00R16Max. Lifting moment8 T·mEngine power116 hp Work range (m)2.545.65Displacement3760 ml (EURO II)Lifting weight at each range (kg)320017501050PrincipleThe truck-mounted crane truck consists of chassis, cargo van, column, frame, boom (crane), outrigger, turntable, hook assembly and etc. The truck-mounted crane realizes various mechanical actions through the principle of hydraulic transmission. The power of the crane is to take out the capacity of the engine through the power take-off to drive the hydraulic oil pump to work, and the hydraulic oil pipe is connected to the hydraulic valve to achieve related functions. We can also use the oil pump motor unit to provide the power source. The oil pump motor unit drives the motor to work through 380V voltage when there is no vehicle power in the field, docks, ships, workshops, etc. If there is no external power supply, we use the generator generates power to activate the electric motor then drives the oil pump to work.  ApplicationIt is widely used in urban and rural construction, road and bridge pipe network construction, landscaping projects, power equipment installation, and mall and medium-sized water conservancy construction, due to its advantageous maneuverability and rapid transfer, that integrate the functions of lifting and transportation.When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.Reference /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
