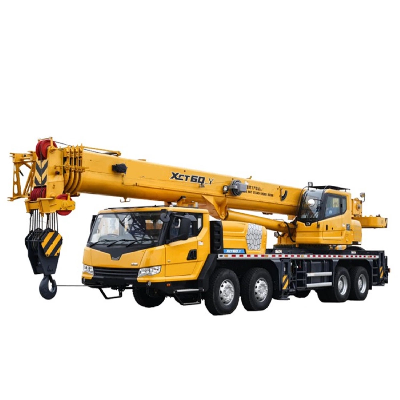

60 Ton Telescopic Truck Crane Mobile Crane Truck Price Xct60

60 ton Telescopic Truck Crane Mobile Crane Truck Price XCT60 Product Description Product Overview XCT60 Mobile Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.Performance Characteristics:1. 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 60 t; the max. lifting height is 59.8 m; Theperformance takes the lead comprehensively.2. The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60ºC. 3. Abundant configurations suitable for various working conditions, meet the requirements of applications such as all oil fields and government projects.  Product Paramenters Item Unit Parameter Dimensions (length x width x height) mm 14090×2790×3630 Total vehicle mass in travel configuration kg 42200 Axle load 1st and 2nd axle kg 16200 3rd and 4th axle kg 26000 Engine rated power/rpm kW/(r/min) 247/2200 Max. output torque/rpm N.m/(r/min) 1350/1100-1600 Max. travel speed km/h 90 Min. turning diameter m 24 Min. ground clearance mm 250 Approach angle ° 18/10 (front protective device included) Departure angle ° 13 Max. grade ability % 36 Fuel consumption per 100 km L 36 Max. total rated lifting capacity t 60 Min rated working radius m 3 Max. load moment Base boom kN.m 2009 Fully-extended boom kN.m 1113 Outrigger span Longitudinal m 6.1 Lateral m 7.1 Hoist height Base boom m 11.3 Fully-extended boom m 43.6 Boom length Base boom m 11.5 Fully-extended boom m 44 Jib offset angle ° 0,15, 30 Boom raising time s ≤40 Boom fully extending time s ≤90 Hoistin Hoisting speed (single line, 4th layer, no load) Main winch m/min ≥130 Auxiliary winch m/min ≥130   Detailed Photos Product ConfigurationCompany Information/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
