20ton Small Truck with Crane Hydraulic Crane Truck Price Xct20L5

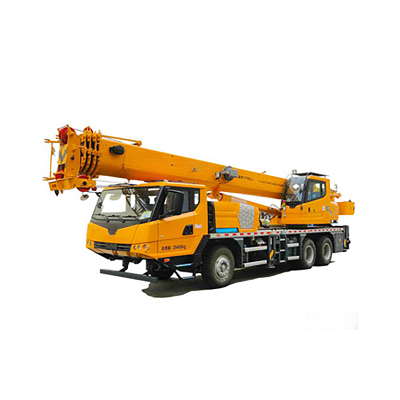

20Ton Small Truck With Crane Hydraulic Crane Truck Price XCT20L5Products DescriptionXCT20L5 truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.Performance Characteristics:* 5-section boom of 40 m with U-type profile is adopted; the max. lifting load is 20 t; the max. lifting height is 47.6 m; the max. working radius is 38.4 m; The performance takes the lead comprehensively.* New energy-saving hydraulic system with high efficiency, durability and fine control (lifting: 2.5m/min, slewing: 0.1°/s)* Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the grade-ability is 42%.Specifications Category Item Unit Parameter Outline Dimensions Overall length mm 12262 Overall width mm 2500 Overall height mm 3410 Wheel base Axles 1 and 2 mm 4425 Axles 2 and 3 mm 1350 Track mm Hande 2027/1834 Meritor 2055 /1834 Weight Dead weight in travel configuration kg 29400 Axle load Axle 1 kg 6400 Axles 2 and 3 kg 23000 Travel Travel speed Max. travel speed km/h 80/85 Min. stable travel speed km/h 2~3 Min. turning diameter m 20 Min. ground clearance mm 261 Departure angle ° 13 Braking distance (at 30 km/h) m ≤10 Max. grade ability % 42/47(China National IV) 42 (China National V) Oil consumption per 100 km (theoretical) L 33 Prouct ImagesOur Advantages     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
