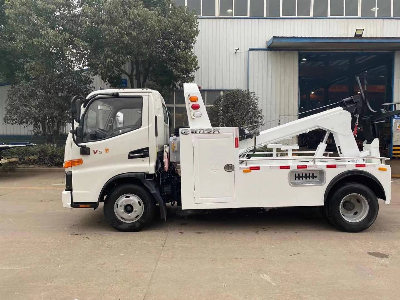

Product DescriptionJAC 4X2 4T 5T 6T Crane integrated Wrecker Towing TruckThe tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.Our one tow two wrecker truck which called flatbed tow truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars.Equipped with 3 ton to 5 ton lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electronic lamp, 20M steel wire, megaphone,etc TOW TRUCK TECHNICAL PARAMETERSTruck SpecificationDriving Type4*2Max Speed (km/h)103Overall dimension(mm)5995x2200x2210Mass in working order( kg)3800GVW( kg)4495Wheelbase(mm)3800F/R track base (mm)1504/1522F/R overhang (mm)1015/2475Approach/Departure Angel16/12Tire7.00-16ClutchSingle-plate dry diaphragm spring clutchSteeringHydraulic steering with power assistanceGear boxMSB 5-speed gear boxBridgeFront axle2.5TRear axle4.8TEngingModel4KH1-TCG40Horse power130HPDisplacement2999LBraking systemService BrakeCompressed air brakePark BrakeSpring energyEletric system24vUpper-Body specificationHydraulic Under Lift at RearMax Lifting weight(kg)3000Max. Rated towing weight(kg)4000Max effective length of boom(mm)1700Extension traveling of boom (mm)1340Hydraulic winches & steel cablesType:Planetary typeQuantity (set)1Max. Pulling power of winch(kgs)4000Length of steel cable(m)21Speed of winch (m/min)3.23Diameter of winch(cm)11Back load platform External dimension of platform (length×width)(mm)4600*2200Max. Loading of platform(kgs)4000Min. Elevation of full extending platform°10Extension traveling of platform3000Power take offTypePTO drive from transmissionWrecker OperationDescriptionPanel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.Hydraulic SystemDescriptionuitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.Safety DeviceAuto brake for winchAutomatic safe brake in case winch / Engine fail.Hydraulic valvesNecessary hydraulic pressure relief & lock valve/ valves SHIPPING (RORO OR BULK SHIP)RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.CONTAINER: The truck is put into the container. This model is used for small model trucksCompany IntroductionChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China. It is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world. l More than 10 years' experience as a manufacturerl CCC, ISO, BV, ASME certificationl Perfect after-sale servicel Trucks covering more than 50 countries and regionsl 300 kinds of trucks and trailersl Good cooperation with 30% regular customersl Annual production value topped 240,000,000 US dollars per year If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future. FAQ1.You are factory or trading Company?Yes, we are oversea sales department of Chengli automobile . And you are always welcomed to visit our factory.2.Could your company modify the standard product depends on my request? Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.3. Could your company totally customize products for me?We can provide the customized-designing product meeting with any of your demand.4. Could you provide certification that we need?We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on. 5. How long could we receive our goods? It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.6. How about the after-sale service?We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in personMore details Plz Contact uSCHENGLI SPECIAL AUTOMOBILE CO.,LTDOverseas Sales Department :Echo Wong ( manager)Office Add: Overseas17# Building Room 6026
