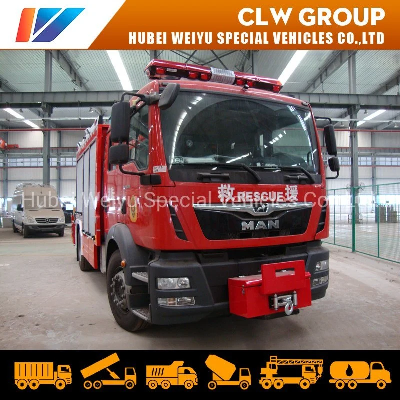

Man 4X2 Emergency Rescue Fire Truck with 5ton Folding Crane at Rear

MAN 4X2 Fire truck Emergency Rescue Truck firefighting truck with Crane and Winch Product Description1.MAN 4X2 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room. And at rear there is a crane can lift 5 tons.2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.Specifications MAN rescue fire truckGeneralVehicle BrandCLWChassis BrandMANOverall Dimension9135x2500x3600mmGVW/Curb Weight14600/14150kgFront/rear track2022/1830mmApproach/departure angle14/10 (°)Front/rear suspension1500/2640mmLeaf spring10/9+6CabCab Seat2 +4 seatsAir ConditioneroptionalChassisDrive Type4x2TransmissionManualWheelbase4600Tyre Specification12.00R20Tyre No.6+1Max Speed95km/hPaintRed or as requestEngineFuel TypedieselEngie ModelD0836LFL41Power199kw/270HPDisplacement6871ccEmmission StandardEuro 4SuperstructureFront winch,rear hydraulic lifting craneUp and down lighting systemMain light4x1000W Yuntai DC12VElectric control caseAC 380V wired controlHydraulic lifting craneMax loading capacity5000kgMax lifting height7.4mMax support leg distance3540 mmFront equipped winchFront winch capacity3629kgSpeed5.6m/minVoltage24VDC 240AGeneratorGenerator380V,10kv/AOptionalColour for optional, LHD and RHD for optional,Air conditioner for optionalReference photos Equipment come with fire trucksProduction ProcedureBulk OrderCompany Introduction Overseas Exhibition and Local SupportCustomer  Visiting and Inspection    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
