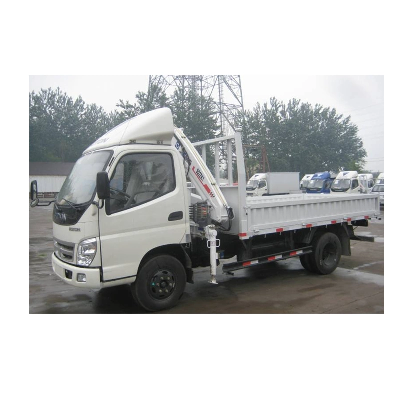

Foton Aumark 3 Tons Truck Mounted Crane Foton Mini Crane Truck

Product DescriptionThe crane truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.Product ParametersVehicle model AUMARK-S33Cabin Single row/W2060/left rudderWhole vehicle main dimensionsOverall dimensions (LxWxH)mm5890×2105×2400Wheel base(mm)3360Weight dataCurb weight(kg)3210Gross vehicle weight(kg)8275Persons in cab    3Whole vehicle main performanceMax. speed(km/h)105ENGINEModelF3.8s3141Emissions standardsEuro IIIDisplacement(L)3.76Rated Power(kw/rpm)105Max torque (N.m/rpm)450GearboxModel6S558Front axleType/Mainreducetion ratio 3.6TRear axleType/Mainreducetion ratio 6T/5.286SuspensionFront suspension/Leaf spring number9Rear suspension/Leaf spring number8+6Brake systemService brake Drum pneumatic brakingParking brake Brake gas brakeAuxiliary brake Engine exhaust brakeWheels and tyre size 6+1/(L8.25R1614L)Technical parameters of truck mounted craneCrane requirementsType/PositionStraight arm/frontcraneSQ3.2SK2QRotation angle360°Full rotationSubframeMaterial/plate thicknessLongitudinal beam :Q345/10mm Beam: Q345/8mmCargo boxsize4170*2100*400mmDetailed Photos Company ProfileStrategic partnerOur AdvantagesCertifications /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
