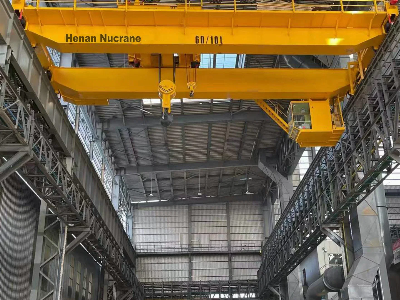

Qd Model 100tons Double Beam Electric Overhead Crane

QD double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).  Main Features of QD model Crane:1). Long Life Span: 30-50years;2). Easy for Installation and maintenance;3). Reasonable structure and strong rigidity;4). The speed can be frequency inverter speed control;5). Control method is cabin control or remote control;6). Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;7). Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe     Lifting Capacity   T51016/3.220/525/532/550/10400/80Span  M10.5-31.528Lifting height MMain Hook1616161212/11.0161222Aux Hook  181114/13181624Speed  M/minhoistMain hookA512.58.57.97.27.37.85.92.92A615.513.3139.79.89.57.8 Aux hook   14.512.712.719.513.29.24Trolley travelling37.243.844.644.63742.438.537.2Bridge travellingA589.8 /92.389.8-91.984.7-87.684.7/ 87.685.5/8874.2-87.674.625.9A6116.2/ 117.4112.5-116.8112.5112.5/ 101.4112/ 101.486.8-101.487.3 Weight(kg)TrolleyA5212634246227685671851087715425142.3A6222435626427718078561165215765 Total WeightA512715-3140514270-3440519128-3942819947-4149720795-4279626901-5274835317-64880359000A612991-3159614719-3469920045-4131520984-4422522632-1632428061-5527236075-67242 Max Wheel Load KNA574-125102-160141-205163-231185-255237-327333-4507500A675-126104-162145-211167-239189-263242-335336-457 Rail recommendedTrolley15kg/m43kg/mBridge43kg/mQU70QU80QU120Power SourceAccording to your demandAfter-Sales ServiceOur after-sales service provide:1.14 months warranty when products leave the factory, or 12 months warranty after installation 2. 2 years spare-parts provided for better maintenance.3.Professional technical staffs provide installation, commissioning and training services.4.Delivery with English user manual, parts manual, product certification and other relevant certificates.5.Technical advisory for any time and Engineers available to service machinery overseas.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
