Construction 35ton Hydraulic Engine Crawler Crane Tower Mobile Truck Crane

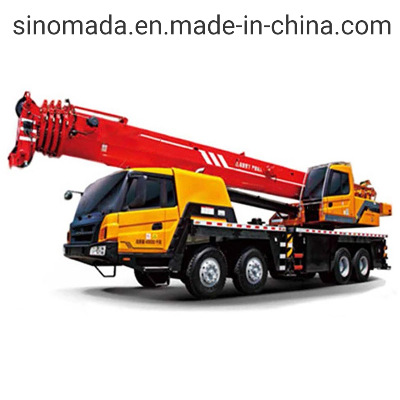

Construction 35ton Hydraulic Engine Crawler Crane Tower Mobile Truck Crane  Product Description Powerful Lifting CapacitySTC350T with 35 TON lifting capacity.The 35 ton truck crane has four-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 35t, full-extended boom length of 43m, jib length of 11m, max.lifting height including jib of 59m, reduce weight and improve safety significantly.Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.Efficient & Unique Hydraulic SystemTriple gear pump, load feedback and constant power control is applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design is adopted to ensure stable braking operation.Intelligent Electronic ControlSelf-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.Load Moment LimiterEquipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.More Safe DevicesMain and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.Product Parameters TypeItemUnit SpeccificationDimensionOverall lengthmm13300Overall widthmm2550Overall heightmm3640main parameterOperating weightkg37730Axle load of 1,2kg13000Axle load of 3,4kg24730Engine data engine modelWP9H310E50engine powerKw/rpm228/1900max. engine output torqueN.m/rpm1500/1000-1400Traveling parametermaximum travel speedKm/h85minimum turning radiusm11.75Approach angle°≥19departure angle°≥14maximum gradability%42fuel consumptionI≤37   Detailed Photos  Company Information     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
