Factory Price 35ton Hydraulic Truck Crane Ztc350h552

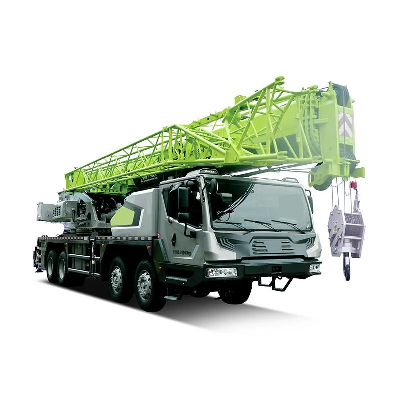

Sales ManagerMila Zhang  Factory Price 35Ton Hydraulic Truck Crane ZTC350H552  Product DescriptionThe ZTC350H552 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years' manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.The truck crane, with spacious cab and compact decoration, adopts full slewing system, 5-section telescopic boom sections, hydraulic proportional control system and self-made full-width special purpose chassis with three axles. The 6×4 drive and hydraulic power steering mechanism provides the crane with good driving performance and flexible steering. The engine complies with the National Stage III emission standard.The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage and makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.  The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.Product Parameters             Working performance Max. rated lifting capacity kg 35000   Max. load moment of basic boom kN.m 1132   Max. load moment of main boom(fully extended) kN.m 617.5   Max. load moment of basic boom m 11.1   Max. lifting height of main boom m 44 The parameters do not include deflection of main boom and jib Max. lifting height of jib m 60 parameters Max. gradeability % 37   Min turning diameter m ≤22   Min. ground clearance mm 220   Oil consumption per hundred kilometers L 35   Mass Deadweight in driving condition kg 32000   Complete vehicle kerb mass kg 31870   Front axle load kg 7000   Rear axle load kg 25000   Dimensions Overall dimensions(L×W×H) mm 12900×2500×3465   Longitudinal distance between outriggers m 5.36   Transversal distance between outriggers m Fully extended:6.10 m   Intermediately extended:4.20 m Tail slewing radius mm 3385   Main boom length m 10.6 - 40.0   Boom angle ° -2 - 80   jib length m 8   Offset ° 0,30    Detailed Photos   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
