Product Description1. Main girder of gantry crane-Be welded of steel plates with honeycomb hole, connected by high strength precision bolt.-There is sliding rail for trolley to travel upper the girder which is fixed on outrigger by high-tension precision bolt.2. Traveling mechanism of gantry crane-Consists of driving gear box and passive wheel box-The driving gear box supplies power to finish the crane' travelling.-What the difference between driving gear box and passive wheel box is that passive wheel box lacks transmission structure such as dynamo, rescuer and a pair of exposed gear.3. Cabin of gantry crane-Glass window can make the operator see all the working condition and the cabs installed in the front and two sides-As a group of independent cabin, fixed outside of cab is connected by control cable and linkage station which is set up in theCab.4. Trolley with gantry crane-The trolley is assembled with motor, reducer brake, trolley frame, hook, pulley, rain cover and other parts.-Include lifting mechanism and crossing travelling mechanism.-The trolley is strictly designed according to the application and working environment.5. Electric system of gantry crane-Hoisting motor, long traveling motor and hydraulic power motor are included.-The whole electric system is controlled by PLC(programmable logic controller).-Two operation modes: cabin and remote control.Detailed PhotosProduct Parameters Loading capacity5 ~ 500tLifting height3 ~ 30 m or customizedLifting speedSingle speed: 3 ~ 8 m/min; or customizedVariable frequency speed: 1 ~ 20 m/min; or customizedSpan5~35 mLifting mechanismWinch trolley ,Explosion-proof hoist Working classA3 ~ A7Working temperature-20 ~ 40 ºC Power supplyAC-3Phase-220//230380/400/415/440V-50/60HzControl voltageDC-24 / 36VMotor protection classIP54 IP55 IP65Control wayGround handle control(Push button),wireless remote control,cabin controlSafety deviceBuffer,current overload protection,overload device,power failure protectionApplication areaFactory,workshop,warehouse,power station,logstic,etc.Painting colorYellow,Red or CustomziedModel NO.EW Maximum Lifting Weight

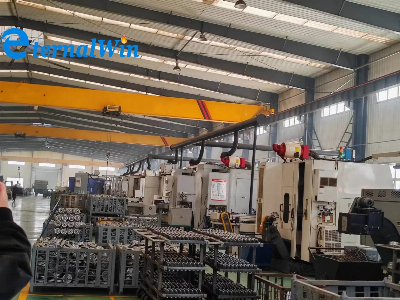

Related products about 500kg 1ton Cargo Lifting Machine Small Warehouse Electric Eot Overhead Crane Price
-
