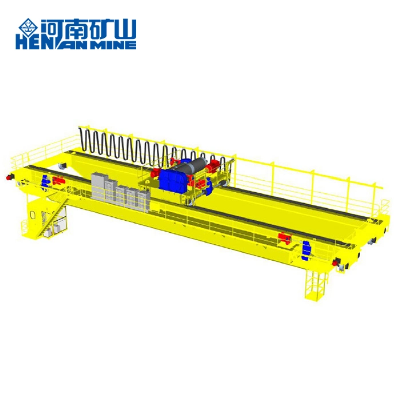

Heavy Duty Warehouse Wireless Control Double Girders European Traveling Eot Crane

High quality cabin control electric double beam European overhead craneProduct introduction:Capacity: 5,10,16/3.2,20/5,32/5,50/10T, up to 450/80TSpan: 10.5-31.5 m or moreLifting height: 6-30 m or moreLifting speed: 0.9-15 m/min or moreCross traveling: 5~45 m/min or moreLong traveling: 20~92 m/min or moreWidely used in: Factories, warehouses, etc.Double girder overhead crane is composed with double girder frame, crane traveling end truck, and the top running trolley with lifting and travelling device. The motors, reducers and brakes in this model crane lifting and traveling mechanism are separate parts, which makes the crane higher working duty from A3~A6 (ISO) and faster lifting and traveling speeds.The cranes standard speeds are adjustable, which allow the crane adjust its speed under  10 grades speeds. It could move very slow which makes it possible to do very accurate works.This model overhead crane is designed under GB regulation, passed ISO, CE certification.The crane lifting and travelling speeds are steady and accurate.Safety feature: 1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible2. Long and cross travel limited by means of preliminary and final limit switches or infrared anti-collision device3. Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling4. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact5. High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling6. Safety hook latch used for avoiding the lifted material out off from the hook7. Audible and visual alarm device to inform the person stay near by the travelling crane8. Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism9. Protective earth conductor is fitted as standard10. Voltage lower protection system11. Current overload protection system and more (contact with us more details)Design standard1. Overhead crane and gantry crane manufacturing and tolerances of rail installation GB/T10183-20052. Crane test specification and procedures GB/T5905-19863. Crane electric control equipment JB/T4315-19974. Important application wire rope GB8918-20065. Carbon structure steel GB/T700-20066. Low alloy high strength structure steel GB/T1591-20087. Welding joint radiographic inspection standard JB928-19948. Steel welding joint manual ultrasonic flaw detection way GB11345-1989Installation serviceHenan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions. Firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
