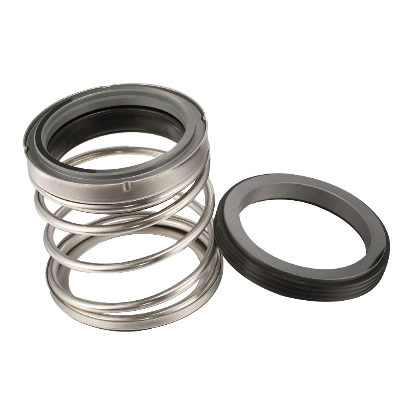

Mechanical Seal, Submersible Pump Seal, Sealing, Seal Ring, Bellow Seal

Our mechanical seal model TS 960 which is widely used for water pumps.  The normal material combination include Hot pressed carbon/Ceramics/NBR/ss304, resin carbon/SIC/NBR/ss304, and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients' needs.Application: blower pump, diving pump, circulating pump seal  Operational Conditions: Temperature:-50ºC to+200ºCPressure:≤1.2MpaSpeed:≤20m/sMaterials: Stationary Ring:Silicon Carbide ,Reaction bondedResin lmpregnate Carton Graohite(Furan) Ni-binder tungsten CarbideRotary Ring: Ni-binder tungsten Carbide(shrunk-in) Silicon carbide,Reaction bonded(shrunk-in)Secondary Seal:NBR,EPDM,CR,Viton,AflasSpring and Metal Parts:F,GApplications:Clean water,sewage water,oilAnd other moderately corrosive fluids.   Design Features:a. Single face, balanced.b. Conform to the DIN24960 and GB6556 standards.Trisun is a professional manufacturer of mechanical seals and OEM pump seals since 1998.Our seals are interchangeable with John Crane, AES, Flowserve, Fluiten, Roten, Sealtek etc.If you want to know more about our seals, pls. send inquiry to me directly and I will recommend suitable seals to you./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
