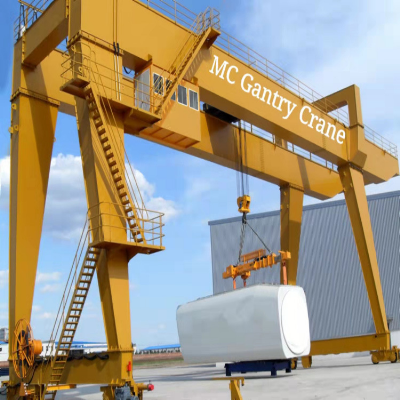

Double Beam Electromagnetic Rail Traveling Goliath Crane for Steel Factory

Double beam electromagnetic rail traveling goliath crane  for steel factory  Product DescriptionThe MC Type Electric Magnetic Goliath Crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.Detailed PhotosMain Features of MC model gantry crane:1). Long Life Span: 30-50 years;2). Steel Material: Chinese standard Q235B and Q345B;3). Trolley rail is made of high strength hot rolled flat steel (16 Mn)4). Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and goodluster5). Control method is cabin control or remote control;6). Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail.7). Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.Product Parameterslifting weight/t51016/3.220/532/550/10working classA5~A8span/m18~35lifting height/mmain hook10~1110~12aux hook10.446~12.918speed(m/min)liftmain hook11.38.57.97.27.55.9aux hook  14.615.415.410.4trolley travel37.335.636.636.63736cart travel37.3~39.739.7~40.137.3~39.739.739.438.5steel track43kg/m43kg/m or QU70power supply3-Ph A.C.50Hz 380VWe can design and manufacture all kinds of non-standard product according to your requirement.Installation Instructions  After Sales ServicePre-sale service>>Efficient response rate during office hours.>>Professional and comprehensive crane design consultation.>>Sincere and friendly service attitude. After-sale service>>One and a half year warranty for whole machines.>>Providing free quick-wear part.>>Low charge for continue maintenance when warranty is expired.>>Remote online video support for technical and repair installation. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
