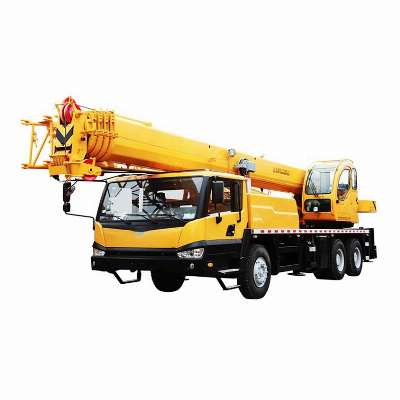

25 Ton Mobile Wheel Crane Qy25K-II Left Hand Drive

Hot ProductsProduct DescriptionAdvantages and highlights:1. Bi-hexagonal cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti-bending and powerful lifting capacity. The main boom length is 10.7m to 34m, completely surpassing its rivals with excellent lifting capacity. Steel plate for main boom is BS700MC, lifting performance of fully-extended boom improves 10~20%, exceeding its rival 1~7%.2. Plug-in boom head effectively increases the boom connect length and reduces boom deformation.3. It has superior travel and grade ability. The max. grade ability is 40%, max. travel speed is 80km/h.4. Open fixed displacement pump and variable displacement motor system is adopted. The load sensitive system that researched and developed by ourselves contributes to smooth operation, high efficiency and energy saving. High pressure variable displacement motor contributes to light load with high speed and heavy load with low speed.5. The boom telescoping system of XC had obtained Chinese patent, effectively prevent occurrence of telescoping cylinder bending and boom broking cause by mis- operation, and therefore operation safety is improved.6. Duplex mode of the engine working condition, uses less power when working on the superstructure as much as possible to reduce fuel consumption.   Product ParametersParameter itemQY25K -IISize parameters*Overall length (mm)12650Overall width (mm)2500Overall height (mm)3380/3290Wheelbase (mm)4425+1350Wheel base (mm)Front wheel 2074/rear wheel 1834Weight parameter*Total mass in driving state (kg)29400Axle load (kg)Front axle 6200/rear axle 23200Dynamic parameters*engine modelWD615.329SC8DK280Q3Engine rated power (kw/(r/min))213/2200;206/2200Engine rated torque (Nm/(r/min))1160/1100-16001112/1400Driving parameters*Driving*Maximum driving speed (km/h)75Minimum stable driving speed (km/h)2.9Turn*Minimum turning diameter (m)21.5Minimum turning diameter of arm head (m)-Maximum grade(%)30Minimum ground clearance (mm)275Approach angle (°)16Departure angle (°)13Braking distance (m)10Fuel consumption per hundred kilometers (L)37Main performance parameters*Maximum rated total lifting capacity (t)25Minimum rated amplitude (m)3Maximum lifting moment of basic boom (kN·m)1010Turntable tail turning radius (mm)3065Outrigger*Longitudinal (m)5.14Horizontal (m)6Lifting height*Basic arm (m)10.8Longest main boom (m)34.19Longest main boom + secondary boom (m)42.3Company Profile /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
