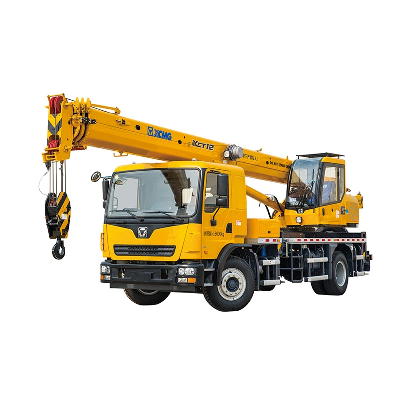

Xct12L4 Main Boom 30.5m 12t Small Crane for Truck

XCT12L4 Main Boom 30.5m 12t Small Crane for Truck  Product DescriptionXCT12L4 New 4-Section Boom 12 ton Lifting Truck Crane XCT12L4 Truck crane is designed to mainly aim at domestic market, and to take international market requirements into consideration. It is mounted on a self-made special chassis, which is suitable for driving on a wide range of roads. It has high lifting height, powerful lifting capacity and high working efficiency. It is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments. It is mounted on a two-axle truck crane chassis. Four-section boom with octagonal profile, a lattice jib, built-in double independent winches, new energy-saving power system, fixed counterweight and new energy-saving hydraulic system are available. The crane has newly designed G1 appearance of Truck Crane,luxurious full-dimension driver'scab and man-machine interactive system with the level of a car. Its performance takes the lead in the industry. It is more intelligent, energy-saving and user friendly to operate. Technical SpecificationsDimensionUnitXCT12L4Overall lengthmm10900Overall widthmm2500Overall heightmm3550WeightTotal weight in travelkg16000PowerEngine model SC7H230Q4/WP6.220E40Engine rated powerkW/(r/min)170/2300 162/2300Engine rated torqueN.m/(r/min)900/1400 850/1400-1600TravelMax. travel speedkm/h90Min. turning diameterm18Min. ground clearancemm250Approach angle°21Departure angle°13Max. grade ability%41Fuel consumption for 100kmL25Main performance  Max. rated total lifting capacityt12Min. rated working radiusm3Turning radius at turntable tailm2.57Max. lifting torquekN.m482.5Base boomm9.5Max.main boomm30.9Max.main boom+jibm38.1Detail PicturesCompany information  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
