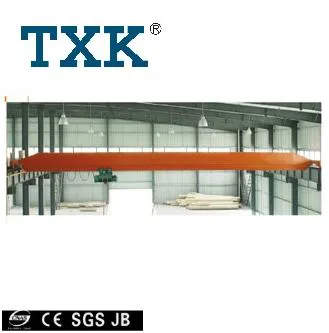

Electric Overhead Crane with Electric Hoist (LD-A-20T)Product IntroductionLD-A type electric single-beam overhead crane is a monorail travelling crane with CD1 and MD1 electric hoist. It can be used in machine manufaturing, assemble and install and storehouse. The capacity is 1-20T, span is 7.5m-22.5m, working condition temperature is -20~40. It is made of electric hoist, metal structure bridge, crane travelling mechanism and electrical control system. This production has ground control, cab control and radio control to facilitate the consumer. Cab have two types, they are end and side door type and open&closed type.Product Features:The girder is U-shaped channel which be made of steel plate, then welded into box-shaped with I-beam. The crossbeam is also U-shaped channel, then welded into box-shaped crossbeam. The primary-side beam use the split-type structure, jonted by bolt, which is convenient for transportation and installation. The up, down and lateral movement of this machine is achieved by the electric hoist suspended from the girder.Technical parametersTravelling mechanismTravelling Speedm/min20; 30/45; 7520; 30/45; 7520; 30/45; 7520; 30/45; 7520; 30/45; 75Reduction Ratio 58.39, 39.38/26.36, 15.6158.39, 39.38/26.36, 15.6158.39, 39.38/26.36, 15.6158.39, 39.38/26.36, 15.6158.39, 39.38/26.36, 15.61MotorModel ZDY21-4/ZDR12-4ZDY21~4/ZDR12~4ZDY21~4/ZDR12~4ZDY21~4/ZDR12~4ZDY21~4/ZDR12~4N PowerKw0.8/1.50.8/1.50.8/1.50.8/1.50.8/1.5Rotation speedr/min13801380138013801380Lifting mechanismElectric hoist model CD1MD1CD1MD1CD1MD1CD1MD1CD1MD1Lifting Speedm/min88/0.888/0.888/0.888/0.877/0.7Lifting heightm6: 9: 12: 18: 24: 306: 9: 12: 18: 24: 306: 9: 12: 18: 24: 306: 9: 12: 18: 24: 306: 9: 12: 18: 24: 30Travelling Speedm/min20; 3020; 3020; 3020; 3020; 30Motor model Conical squirrel-cage rotor motorConical squirrel-cage rotor motorConical squirrel-cage rotor motorConical squirrel-cage rotor motorConical squirrel-cage rotor motorGroup classification A3-A5A3-A5A3-A5A3-A5A3-A5Power supply 3phase; 50Hz; 380V3phase; 50Hz; 380V3phase; 50Hz; 380V3phase; 50Hz; 380V3phase; 50Hz; 380VWheel diametermm Φ 270Φ 270Φ 270Φ 270Φ 270Recommended rail P18, 24, 38, 43P18, 24, 38, 43P18, 24, 38, 43P18, 24, 38, 43P18, 24, 38, 43Spanm7.5~1212~1415~1719.522.57.5~1111~1212~1414~1719.522.57.5~1111~1212~1414~1719.522.57.5~1111~1212~1414~1719.522.57.5~1111~1212~1414~1719.522.5Max. Wheel loadFloor ControlKN8.8~10.110.1~10.710.7~11.71314.313.8~15.215.2~15.615.6~16.316.3~17.619.321.219.3~20.820.8~21.321.3~22.122.1~23.625.828.429.9~31.931.9~32.632.6~33.733.7~35.438.240.550.0~54.354.3~55.455.4~57.257.2~59.562.466.7Cab. Control12.7~14.014.0~14.614.6~15.616.918.217.7~19.119.1~19.519.5~20.220.2~21.623.225.123.2~24.724.7~25.225.2~26.126.1~27.529.732.433.8~35.835.8~36.636.6~37.637.6~39.342.144.453.1~57.557.5~58.658.6~60.460.4~62.765.970.7Total weightFloor Controlt1.51~1.911.91~2.162.16~2.542.953.561.60~19.11.91~2.082.08~2.332.33~2.833.474.191.75~2.122.12~2.282.28~2.552.55~3.093.924.952.04~2.472.47~2.682.68~3.003.00~3.574.645.493.00~3.623.62~3.873.87~4.404.40~5.116.047.71Cab. Control1.91~2.312.31~2.562.56~2.943.533.962.00~2.312.31~2.482.48~2.732.73~3.233.874.592.15~2.522.52~2.682.68~2.952.95~3.494.325.352.44~2.872.87~3.083.08~3.403.40~3.975.045.893.40~4.024.02~4.274.27~4.804.80~5.516.458.13Basic Sizeh1mm555600700800500600700900 65070080010001000700800900110012009001000110011751300B251230123512251230123512251230123512251230123512251230123512W200025003000200025003000200025003000200025003000200025003000h796796871.5871.5818.5818.5841.5841.512301230l2127412741292.51292.5144112911460131018301830h8108608701000 1050 1060 1150117011851210138014001415144014851525154515551555H1490580680 490 58076082053058066084592058066074592097577285294210171142Company ProfileTXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chainhoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience andhard work.Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer,our products are CE, GS, SGS certified, serving all spheres of industry in the world.Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway,shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru,Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and to
