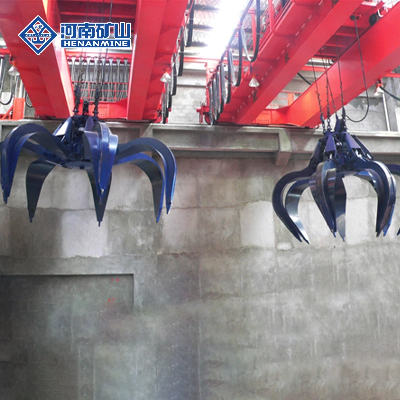

Double Girder Grab and Magnetic EOT or E.O.T CraneGrab and Magnet Electric Overhead Traveling Crane Description: QP double girder overhead crane is composed with girder frame, overhead crane travel device, and the trolley with lifting and moving device. There are pave the rail for the trolley move on the main girder.Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.Safety protection system1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible2. Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device3. Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling4. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact5. High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling6. Safety hook latch used for avoiding the lifted material out off from the hook7. Audible and visual alarm device to inform the person stay near by the travelling crane.8. Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism9. Protective earth conductor is fitted as standard10. Voltage lower protection system11. Current overload protection systemTechnical parameter QP Grab and Magnet Overhead CraneLifting Capacity 5/5 Ton10/10 Ton16/16 TonSpan M10.5-31.5Working DutyISO A6 & FEM 3mLifting heightGrab201822Magnet Chuck162222Speed m/minLiftingGrab40.14041.8Magnet Chuck15.610.413Trolley travelling37.243.844.6Bridge travelling93.77675.3MotorLiftingGrabYZR225M-8/22YZR225S-10/37YZR315M-10/75Magnet ChuckYZR180L-6/15YZR200L-6/22YZR225M1-6/37Trolley travellingYZR225M-8/22YZR225M-8/22YZR225M-8/22Crane travellingYZR160M-6/7.5*2YZR160L-6/11*2YZR160L-6/11*2Weight Trolley8.4Ton13.3 Ton21.2 TonTotal Weight24.7~45.7 Ton29.3~51.2 Ton24.5~74.2 TonPower Source220V,380V,400V,415,440V,50 or 60HZ,3 Phase About us: 1. We are in Crane Hometown of China, could supply you the best quality crane , grab bucket and electromagnet with high technique, and the price is the best. 2. We could supply you all kinds of industry cranes from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE,GOST and so on. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
