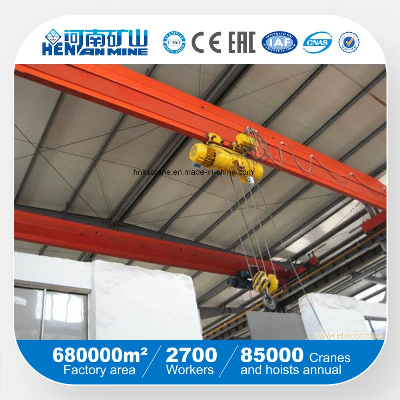

Lda Electric Hoist Light Duty Single Girder Bridge Overhead Crane

Lda Electric Hoist Light Duty Single Girder Bridge Overhead Crane These cranes are equipped with electric hoist and widely used in workshop, warehouse, and material stores and so on. Safety feature: Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on! Control method: Pendent line with press button or remote control or both Design and construction rules: All the standards which is required for the crane is the Chinese standard Crane girder: The crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway! Painting: Primer and finishing paint Color: According to your demand. Average thickness: About 100 microns Lifting capacity (T)1, 2, 3, 5, 10T16, 20TSpan(M)7.5-22.5MCrane travelling mechanismTravelling speed(m/min)20304560752030456075Reducer ratio58.7839.3826.3619.3715.8858.7839.3826.3619.3715.88MotorModelZDY21-4ZDY21-4ZDY122-4ZDY131S-4ZDY112L1-4Power(kw)2× 0.82× 1.51.5× 22.2× 22.2× 2Rotation (m/min)13801380Lifting mechanism(electric hoist)& electric hoist travelling mechanismElectric hoist modelCD1/MD1MD1/HCLifting speed (m/min)8, 8/0.8 7, 7/0.73.5 3.5/0.35Lifting height (m)6, 9, 12, 18, 24, 3012, 18, 24, 30Travelling speed (m/min)20(30)20(30)MotorTaper Squirrel-cage typeTaper Squirrel-cage typeWork dutyA3-A5Power supply380V 50HZ three phase (By your demand)Wheel diameter270mm370mmWidth of trail37-70mm37-70mm  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
