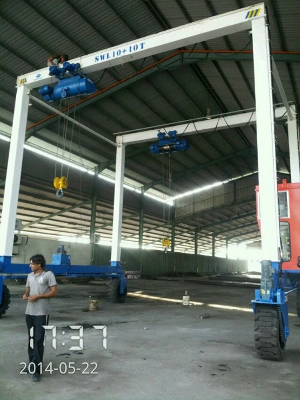

10 Ton Rtg Crane Double Beam Gantry Crane

10 ton RTG Crane Double Beam Gantry Crane Specifications 1.10 Tons 2. High quality and good price. 3. Fast delivery 4. CE, SGS Brief product description: 40 ton gantry crane Double beam is extensively used for lifting and loading, unloading works in outside warehouse or railway stations. Equipped with other lifting appliances, it also can be used for special purpose. It gains many popularities and sold well at home and abroad. Important Technical Data: Lifting capacity: 10~50/10t Span: 18~35m (it can de redesigned as client's requirements) Lifting Height: No limited (can be designed according to client's requirement) Working Duty: A5 (according to the use frequency and working time) Power supply: 3ph, 380V, 50HZ (or under customer's requirement). The obvious characteristics: 1. MG model double beam gantry crane consists of four main parts: The bridge structure, the trolley traveling mechanism, crane traveling mechanism and the electric equipment. 2. The girders and frame are welded structure without weld joint and high degree of vertical and horizontal rigidity. 3. The lifting mechanism is electric trolley, it can equip with hook and other tools to lift containers. Some rail, gear, wheel relevant parts with good quality manufactured by our own group, the quality is easily been controlled. 4. The main electric parts are Siemens and other famous brand. The motor is heavy duty slide ring type, Xindali brand or some other brand top quality in China. The buffer adopts polyurethane material and the brake is electric hydraulic type. 5. This crane has two kind conductive forms: Cable and slip line. Slip line are first recommended, the conductive form and position should be definite when place an order. Operation mode: Operation is in the cabin room which is commodious and comfortable. Safety protection devices: Close type hook, anti-collision system, weight overload protection device, emergency switch and so on. Good painting: Primer and finishing paint, color as the clients' requirements. Overall Technical Parameters construction typebox beam typemainwheel center distance9500mmworking levelA3maximum Wind velocity operating status6maximum wind velocity  nonoperting status11battery50GFservice weight20Toverall motor power22KW  lifting  paramenters lifting weight10Toverall height6400MMlifting speed7000mm/minuteshifting speed20000mm/minuteoperating levelM4steel rope13NTA6*37motor power13KW+0.8KW*2  traveling  paramenters driver type2 tire driveoperating speed15000mm/minutemaximum Wheel pressure6Twheel diameter800mmmotor power2.2KW*2wheel typeSolid tire  Steering  parameters Transmission TypeHydraulic 2tire divertionSteering anglefrom-20 to 20steering Thrust1 Tpump motor power3KW  the length : 10300mm the net length: 8700mm tire capacity: 6.5ton turn radius: 25 M /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
