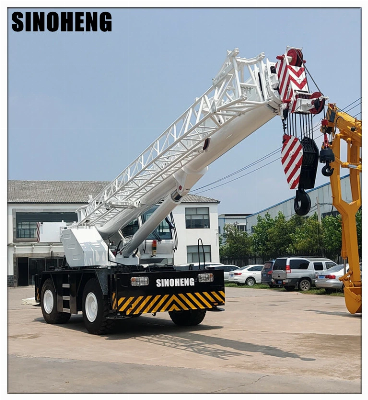

Four Wheel Mobile Rough Terrain Crane 50t in Tanzania

Four wheel mobile rough terrain crane 50t in Tanzania RT50 ( QRY50 )RT50 50 ton rough terrain crane is a kind of telescopic boom and swing type crane which travels with tire type chassis. It is composed of the superstructure and undercarriage. The superstructure is the lifting part, composed of the telescopic boom, jib, main winch, aux. winch, luffing mechanism, counterweight, swivel table, etc. The undercarriage is composed of the suspension and walking part. The superstructure and the undercarriage are connected by the slewing bearing.Main features of RT501. Front-wheel steering, four-wheel steering and crab steering, all-wheel drive, off-road    Performance, suitable for off-highway travel.2. The axle adopts KESSLER+CO (Germany), with axle differential lock.3. The gearbox adopts ZF brand.4. The brake system is imported from American Mico company5. Fully extended outriggers operation, with semi-stretch outriggers operation, without outriggers operation and   traveling with load operation can be realized.6. Suitable for narrow space travel and operations; small turning radius; strong maneuverability.7. Safe and reliable control system, two seats or one seat can be optional, all-directional lifting operation,   greatly enhanced the ability of the front lifting.8. The crane has good traffic-ability, dynamic performance and mobility, and is able to operate in every direction    and travel while hoisting without outriggers. The product is widely used in heavy lifting operations, short    distance transfer, narrow-site lifting operations for construction sites, outdoor oilfields, warehouses, freight    yards, logistics basses and other sites.RT50 Rough Terrain Mobile Crane Technical Specification in travel state  :  CategoryItemsUnitParametersOutline DimensionOverall lengthmm12880Overall widthmm3080Overall heightmm3625Axle basemm3950Treadmm2500WeightDead weight in travel stateKg36140Axle loadFront axleKg19220Rear axleKg16920PowerEngine rated outputKw (r/min)198/2500Engine rated torqueN.m (r/min)970/1200-1700TravelTravel speedMax. travel speedKm/h40Turing radiusMin. turning radiusmm6000Turning radius at swing table tailmm3620Min. ground clearancemm400Approach angle°20Departure angle°19Braking distance (travel speed 30km/h)m≤8.5Max. grade ability%55Max. noise out of crane when acceleratingdB (A)88RT50 Main Technical Parameters in lifting state : CategoryItemsUnitParametersMain Lifting Performance ParametersMax. total rated lifting loadt50Min. rated working radiusm3Max. load momentBase boomKN.m1575Fully extended boomKN.m588Fully extended boom+jibKN.m300Outrigger spanLongitudinalm6.75Lateralm7.1Max. lifting heightBase boomm10.86Fully extended boomm32Fully extended boom+jibm47.6Boom lengthBase boomm10.25Fully extended boomm32Fully extended boom+jibm47Jib installation angle°0, 30Working Speed ParametersBoom derrick timeBoom raising times55Boom descending times90Boom telescoping timeBoom fully extended times65Boom fully retracting times52Max. swing speedr/min2.0Outrigger telescoping timeHorizontal outriggersExtending synchronouslys12Retracting synchronouslys12Vertical outriggersExtending synchronouslys14Retracting synchronouslys21Hoisting speed (steel wire rope is at the 4th layer)Main winchNo loadm/min130Auxiliary winchNo loadm/min100/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
