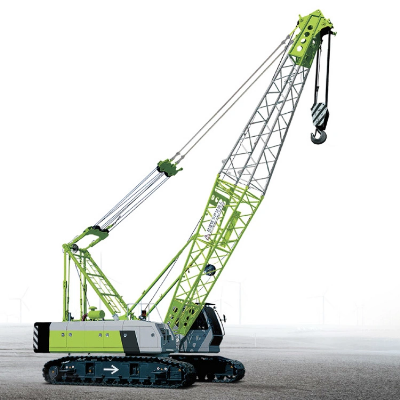

Zoomlion Crawler Crane 50 Tons Zcc550h Crane

Zoomlion Crawler Crane 50 tons ZCC550H Crane 1. Model: ZOOMLION ZCC550H 2. Boom length of the long jib(m) 13~52m 3. Boom length of long vice jib(m) 6~15m 4. Engine brand/engine power(kW) WP6G190E26/140kW 5. Whole machine weight (t) 51t 6. Max hosting capacity(t) 55t SpecificationItemUnitValueRemarksMax. lifting capacity × radiust × m55×3.7 Max. lifting capacity on fixed jibt5.5 Max. lifting capacity of luffing jibt12 Main boom lengthm13 - 52 Fixed jib lengthm6 - 15 Max. length of main boom with fixed jibt43+15 Luffing jib lengthm16m-28m Max. main boom +max. luffing jibm40mm+28mm Derricking angle.30 - 80 Fixed jib angle.10,30 Max. rope  speedof winchesHoisting winch 1m/min125/100With optional free-fall functionHoisting winch 2125 Derricking winch80 Slewing speedrpm0-2.1 Traveling speedkm/h0-1.6 Max. gradeability%30With basic boom and counterweight over frontGround pressureMpa0.068 Deadweightt50.5With basic boomCrane counterweightt17.5 Overall dimensions(L × W × H)m12800×4600(3300)×3120With A-frame and main boom pivot sectionEngineModel WP6G190E26Manufacturer:Weichai Power CO, Ltd.Rated power / rotational speedkW/r/min140/1900Max. output torque /rotational speedNm/r/min830/1300Exhaust emission National Stage2The distance between track center × crawler contact length × crawler widthmm2540 ×5000×760Crawler carrier retracted3840 ×5000×760Crawler carrier extended Noiselevel outside operator's cab during operation(dB)≤107 Noise level in operator's cab during operation≤85Detailed ImagesWhy Choose Us  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
