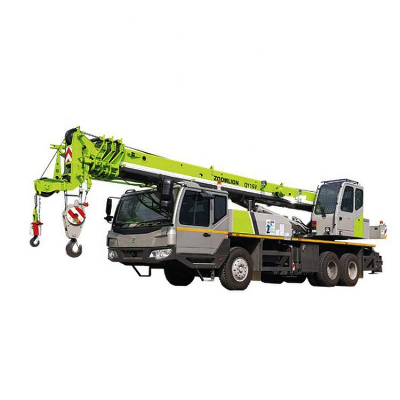

Hydraulic Cranes Machine Zoomlion Ztc160e451 16ton Mobile Truck Crane

Hydraulic cranes machine ZOOMLION QY16V431R 16ton mobile truck craneFlexibility & Mobility, High Efficiency & Stability 1. Leading operating speed and comprehensive efficiency surpass others among the industry by 10%. 2. Brand new optimized Hexagon main boom, together with strong chassis frame, outriggers, making its lifting capacity as powerful as the 20T among the industry. 3. By using LUDV main valve, the stable multi-movement operation is guaranteed.4. Golden driving chain with WEICHAI engine, FAST transmission and ZOOMLION axles, enables it with lower maintenance cost.Product DescriptionProduct ParametersItemParametersUnit Working performanceMax. rated lifting capacity16000kgMax. load moment of basic boom710kN.mMax. load moment of main boom (fully extended)408kN.mMax. lifting height of basic boom-mMax. lifting height of main boom31.08mMax. lifting height of jib38.5mWork speedsMax. hoist rope speed (Main winch)120m/minMax. hoist rope speed (Auxiliary winch)108m/minBoom derricking up time38sBoom telescoping out time55sMax. slewing speed3r/minDrivingMax. driving speed75km/hMax. gradeability35%Min. turning diameter≤20mMin. ground clearance250mmOil consumption per hundred kilometer30LMassDeadweight in driving condition23000kgComplete vehicle kerb mass22870kgFront axle load6200kgRear axle load12800kgDimensionsOverall dimensions (L × W × H)12050×2500×3400mmOutrigger spread (L)4.95mOutrigger spread (W)5.6mMain boom length9.8~30.8mBoom angle-2 - 80.Jib length7.5mOffset0, 30.EngineModel-- Rated power--kw/r/minMax. output torque--n.m/r/minCompany Information  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
