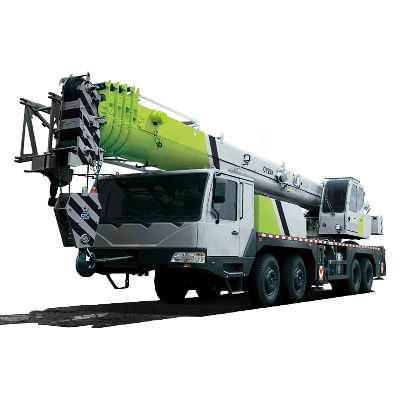

China New Zoomlion 100ton Truck Crane Ztc1000V for Sale

Product DescriptionZoomlion 100 Ton Truck Crane ZTC1000V For Sale1, This high-tech product, combining mechanical, electrical and hydraulic systems as a whole, has so many advantages, such as good control performance, excellent mirco-positioningperformance, great lifting capacity and super lifting height.2, The 5-axle chassis with 6-section main boom 63m, total lifting height with jib reaches 82.5m, with additional extension jib, lifting height can reach 90.5m.3, The latest electro-hydraulic proportional directional control valve with load sensing function ensures that each mechanism makes full use of its movement efficiently.4,Fully equipped with safety devices, such as relief valve, balance valve and electronically safety devices, enable your stuff and machines safety.       Product Parameters ItemValueWorkperformanceMax. rated lifting capacity              kg10000Max. load moment of basic boom           kN.m4000Max. load moment of main boom (fully extended) kN.m1860Max. lifting height of basic boom        m14.0 Max. lifting height of main boom         m64.0 Max. lifting height of jib               m82.5 / (90.5)WorkspeedsMax. hoist rope speed (Main winch)       m/min.110Max. hoist rope speed (Auxiliary winch)  m/min.75Boom derricking up time                  s70Boom extending time                      s13Max. slewing speed                       r/min.1.5DrivingMax. height above sea level              m2000Max. driving speed                       km/h75Max. gradeability                        %40Min. turning diameter                    m≤23Min. ground clearance                    mm300Limits for exhaust pollutants and smokeConform to related standardsFuel consumption per hundred kilometers  L70MassDeadweight in driving condition          kg58400Complete vehicle kerb mass               kg58205Load on axles 1 and 2                    kg10800/10800Load on axles 4 and 5                    kg26000(dual-axle)/10800DimensionsOverall dimensions (L × W × H)         mm15400×3000×3950Outrigger spread (L)                     m8.05Outrigger spread (W)                     m7.6 (fully extended),5.4 (intermediately extended)Main boom length                         m13.5~63.0Boom angle                               °-0.5~82Jib length                               m11 ,18.6Jib + extension length                   m26.6Offset                                   °0 ,30Detailed Photos   Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
