Qshi Portable Mobile Container Gantry Crane

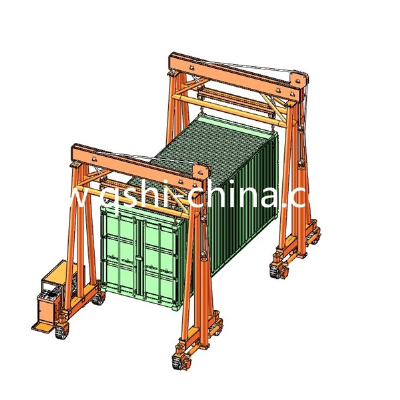

QSHI Portable mobile container gantry crane   Product instruction:QSHISM400 has the characteristics of 490BPG-type diesel-powered , low noise, and low vehicle vibration. The main body is composed of steel struction frame, wire rope, hydraulic motor of hydraulic transmission system ,gear pump,steering cylinder, lifting cylinder,double acting balance valve and walking solid tire. The lifting and steering system us controlled by a hydraulic cylinder ,so that is stable and safe,and the loadig and unloading efficiency is high,The steering system is two-wheel -drive and has four-wheel steering. The maximum turningangle is up to 110 degree abd the turning radius is small. Drawing:QSHISM400 Parameter:   specifications1 model number QSHISM4002 total weightT83 rated capacityKg400004max.steering speed (without load)Km/h3.55 min.passageway widtymm32006 rated torque of hydraulic motorNm10107 max.lifting speed without loadmm/s358 max.falling speedmm/s259 max.lifting speed with loadmm/s2510 max.falling speedmm/s3011 engine powerKw3712 system pressureMpa1613 rotation angle of turning wheel.110 specifications of structure14 L*W*Hmm5055×2655×632015max.height of lifting beammm466016 lowest height of lifting beammm227017 The minimum ground clearancemm11018 Longitudinal trackmm220519crosswise treadmm372520 inside width of crosswisemm3275/338021 Wire rope diametermm2822 Tire sizemm450×180Pictures:    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
