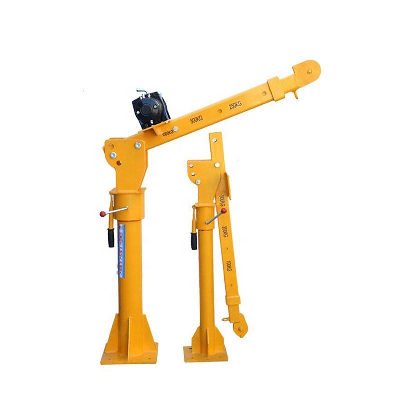

Pickup Truck Crane with Winch Manual Rotation Use on Truck

Functiom:Mini truck mounted crane is one of our professional products, with 12 volt /24volt DC as the power. It is widely used in pick-up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structually compact , small sized, light weighted, and minimal space required, It is a good helper for lifting goods equal to or less than 1000kg in weight. mini truck mounted cranekconsists of five major parts: column, supporting rack,arm,boom and winch as well as other accessories. 6010&6011 ball bearings serves as the suppoting point for the crane. The user operates the push bar making the boom rotate 360° to finish the job of loading and unloading. Goods can be lifted and lowered with the winch . Specification Single line Lifting Capacity (Max) 500kg Double line Capacity (Max) 800kg Lifting Height Max.Std.(base to hook) 1940mm Reach Max.(from center of rotation) 1490mm Rotation (continuous) with Brake 360° Manual Lifting Cable 4.8mm x 6.5m -1pc(for single-line lifting) Line speed with No Load 3.6m/min single line Power Requirements 12V 24V DC Switch Cable 4.2m Mounting Base 250x250x18mms Mounting Bolt Hole Pattern 170x170mms Finish Powder Coated Electric winch model P3000lbs Net Weight of Crane 55.5KGS Color available Yellow,red and black FAQ 1. how can we guarantee quality?Always a pre-production sample before mass production; Always final Inspection before shipment; 2.what can you buy from us?lifting chain,load chain,chain block,electric hoist,Cargo trolley 3. why should you buy from us not from other suppliers?We adhere to the "survival from quality, growth from trust" enterprise spirit for customer service, to ensure product reliability. We promise product life-long warranty, original factory accessories technical support. 4. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C,Cash; Language Spoken:English,Chinese /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
