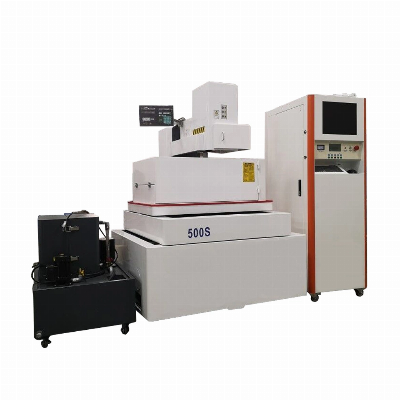

Medium Speed Servo Control EDM CNC Molybdenum Wire Cutting Machine Tat400s

Medium speed Servo control EDM CNC molybdenum wire cutting machine TAT400S X and Y axis adopt imported high-precision linear guide rail and imported high-precision ball screw, to determine the long-term high-precision of the machine tool and avoid the transmission error when moving!The guide wire nozzle adopts the design scheme of slow running wire, the UV axis is fixed, the guide wire nozzle can automatically rise and fall, making it close to the workpiece processing surface to the maximum extent, preventing the molybdenum wire from shaking again, avoiding the cutting surface line mark, greatly improving the precision and roughness of the processing surface.The tightening system adopts two-way automatic tightening device to control the tightening of molybdenum wire in real time. It completely solves the unevenness of the processing plane and the plane precision caused by the unsuitable tightness of molybdenum wire in the process of processing.The guide wheel adopts special positioning jewel guide wheel and positioning water spray plate. The replacement can return to the original point automatically, which greatly reduces the difficulty of replacing vulnerable parts and facilitates the use of customers.The imported linear guide rail and the imported switch are used for the reversing switch to ensure the stability, high precision and long-term reliability of the high and low speed operation of the screw drum.Slow wire structure water tank filtrationMedium speed Servo control EDM CNC molybdenum wire cutting machine TAT400S   Performance of the whole Equipment typeunitTAT-400SFuselageHost Size (Length * Width * Height)mm1700*1300*2160Total weightkg1500WorkbenchWorkbench size (width x length)mm740*460travelX-axis travelmm320Y-axis travelmm400Z-axis travelmm300CNC Power Supplypulse widthus1-250wire speed 0-3Cutting numbertime1-7Mini Mechanical Driving Equivalentum1Pulse Resolutionum0.4Processing capacitySpindle stroke (electrically adjustable)mm250Max.cutting  slope/workpiece thickness 6°~30°/80mmMax. Bearing Capacity of Workbenchkg300Machining accuracyLocation accuracy X/Ymm≤0.01Repeated positioning accuracy X/Ymm≤0.005Multi-tool Cutting Accuracymm≤0.005( 40mm,Cut one and repairtwo.MaterialSKD11orCr12,HRC58)Optimum Surface RoughnessumRa≤1.0(MaterialSKD11 or Cr12,HRC58) Maximum cutting efficiencymm2/min≥220Common cutting efficiencymm2/min≥140Max. Processing CurrentA≥6-8machineProcessingefficiencyNo-load Voltage of Machining Power SupplyV100  Power consumptionKW≤2.3 Wire  traveling systemElectrode wire diametermm∮0.12-∮0.2  Wire  barrel traveling speed frequency control  Tightening method Two-way automatic tightening  Wire travelling speedm/s3-12 working grooveFiltration accuracyum
