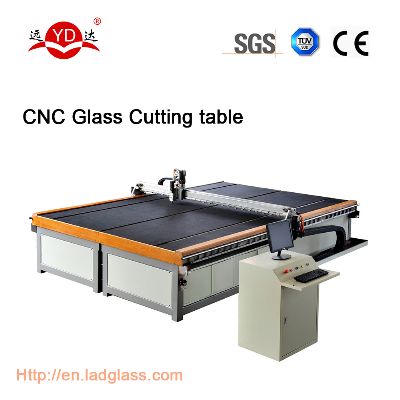

Chinese Manufacturer CNC Automatic Glass Shape Cutting Machine

CNC automatic glass shape cutting machine* Automatically load glass on table* CNC fast cutting * Air float in the machine * For various shape of glass cutting* Machine size can be customized CNC glass cutting machine                                          With 3 loading arms to load glass automaticallyEach arms has 4pcs suckersPC computer control, Microsoft windows interfaceStandard Chinese and English interfaceController:America GALIRack/Gear:Japan KHKCutter wheel / wheel clamp: Belgium  Low voltage electric parts: Schneider (France) Optimize softwareAir float table for easy move Machine specification:                                                                  Loading:max loading size:2500*2000mmLoading glass thickness:3~19mmFastest cycle loading time:40-50SMax loading depth:700mmMax loading weight:900KGSingle side loading bars:3 armsSuckers on each arms:4 pcsInstallation power:6KWAir compressor:0.3MpaVacuum pressure:-70~90Kpa(adjust by glass thickness)Cutting:Max cutting glass layout: 2500*2000mmWorking table height: 900±50mmGlass thickness: 3~19mmLinear parallel: ≤±0.25mm/mDiagonal accuracy: ≤±0.30mm/m(The above accuracy is base on glass before breaking)Cutting bridge speed: 0~150m/min(can be adjusted)Cutting bridge acceleration: ≥3.0m/s2Cutting head speed: ≥150m/minCutting head acceleration: ≥6.0m/s2Cutting head positioning accuracy error: ≤±0.15mmMachine total power: 8KWAir compressor: 0.6PA Warranty and service:                                                                    1 year warranty for the machineLife time service available for parts and malfunctions24 hours on line serviceWorking video and installation video avaibleProvide English operation manualInstallation and trainning service Payment term and shipping:                                                         By T/T, 30% deposit, balance paid before deliveryMachine delivery after 30 days production.Machine loading in container or sending by  LCL cargo is permit Shipping agent will be offer if you required    Contact us: Kelly FengMobile: +86 13630073630   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
