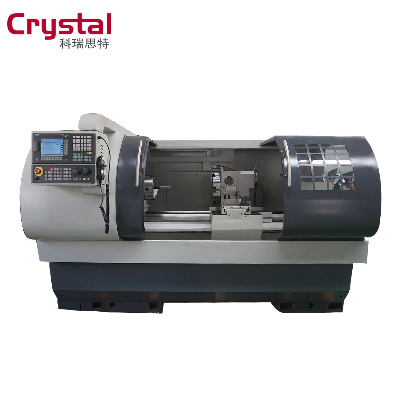

CNC Metal Cutting Lathe Ck6150A Siemens 808d CNC System

CNC Metal Cutting Lathe Ck6150A Siemens 808d CNC SystemMachine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.Product Display  CK6150A CNC Lathe Features:1.A high strength, widening the carriage, suitable for heavy cutting2.Four position electric turret3.Frequency conversion stepless speed regulation4.Standard configuration: manual chuck5.Optional configuration : hydraulic chuck CK6150A CNC Lathe Specifications:ItemCK6150AMax. Swing over bedΦ500mmMax. Swing over cross slideΦ280mmProcessing length750mm/1000mm/1500mm/2000mmWidth of the bed400mmDiameter of spindle boreΦ82mmSpindle taper1:20/Φ90spindle noseType of spindle head D-8Spindle speed150-2000rpmchuck size250mmTool holder4 stationTool bar section25X25mmMain motor power7.5KWX/Z axis position accuracy0.02/0.025mmX/Z axis repeatability0.01/0.012mmX/Z axis torque6/10N.MX/Z axis travelX 360 Z 750mm/1000mm/1500mmX/Z axis fast feeding speed8/10 M/MINTailstock sleeve travel150mmTailstock taperMT5Dimension2410/2660/3160*1560*1730mmweight2800/3200/3500kgDetail ShowCK6150A Lathe Optional Configuration :1. Siemens system /Fanuc system2. Hydraulic chuck/ pneumatic chuck  3. Hydraulic tailstock/ pneumatic tailstock4. 6-piece electric tool post/8- piece electric tool post/ Gang type tool5. Auto bar feeder /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
