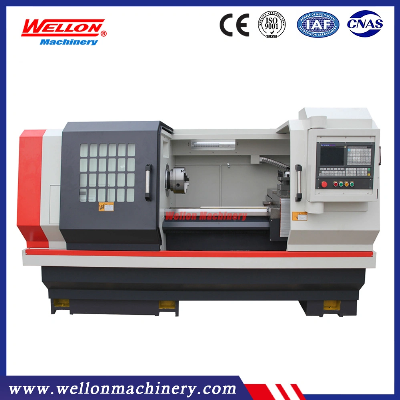

Hot Sale Horizontal CNC Lathe CK6140 Metal Turning CNC Lathe Machine

              Hot Sale Horizontal Flat Bed CNC Lathe CK6140   Hardened by induction, the machine bed and carriage has a long durability.Electric turret and gang-tools turret can be both installed.Auto lubrication cnc machine4-position electrical tool post as standard, 6-position is for optional selection,Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft,etc High efficiency and accurate processing. The bed way has been finely grinned after ultra-tone quenching.It is applied to various line like automobile, valve, electric tools and hardware,etc. Technical parameters:SPECIFICATIONCK6140CAPACITYMax.swing over bed400mm Max.swing over carrage225mm Max.turning dia. of disc350mm Center Distance750mm Bed Width360mmHEADSTOCKSpindle hole65mm Spindle noseISO-A2-6 Spindle taperMT6 Spindle speed stepsVariable Spindle speed200-2000rpmCARRIAGEX/Z axis rapid travel speed6000/8000mm/min Max.travel of X/Z axis240/1000mm Number of tool postVertical 4 position electrical Max.size of toolshank20*20mm2ACCURACYPositioning accuracy0.01mm Repeat positioning accuracy0.005mm The smallest unit 0.001mmTAILSTOCKDia.of tailstock sleeve65mm Taper of tailstock sleeveMT4 Max.travel of tailstock140mmMOTORMain drive motor5.5KW Coolant pump motor120W     PACKING(L*W*H)225*150*195cm     N.W/G.W1700/1950KGSStandard Accessories:GSK980TDC /Siemens 808D /Fanuc 0i TFcontrol systemInverter motor 5.5kw 4 station electric turret200 mm manual chuck Manual tailstockIntegrated automatic lubrication systemCoolant systemLighten system Company Information:      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
