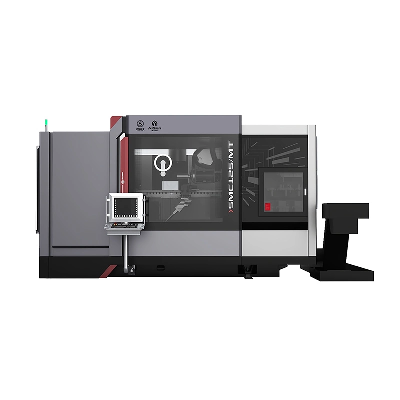

5-Axis Vertical-Horizontal Conversion Machining Center

brand profileBrand brief introduction:Aigen is affiliated in CASC Group,which is leading leader in the aerospace industry in China.Aigen is committed to achieving domestic substitution of imported high-end five axis machine toolsAigen's products are widely applicated in aerospace, military, automotive, medical, electronics, and molds industry. We gain large market in China and mainland Europe.Product DescriptionRough advantage of SMC seriesApplication Industry: Aerospace, Mechanical,Engineering Consumer Electronics, Energy IndustryTypical Materials: Titanium Alloy, Aluminum AlloyTypical Parts: Fan Disc, Thrust Rod, Receiver, Tool TurreMain structure and featuresThe SMC 125MT mill-turn combined machining center integrates the milling process and the turning process.The vertical-horizontal conversion of the B-axis, through the swing of the B-axis, realizes the vertical processing or horizontal processing of the milling spindle, which is a composite processing method.The swing angle of the B-axis ranges from -30° to +180° . With the 45° B-axis motion characteristics, the maximum rigidity and the highest precision are achieved. The positioning accuracy of the B-axis is 8″, and the repeatability of the positioning accuracy is 4″ . The full-sequence machining process of the milling-turning compound machining center equipped with double exchange pallets can increase the productivity by 300%.Compound processing can reduce the number of clamping, and the exchange pallet can complete the clamping and adjustment of parts while the equipment is being processed. Equipped with hollow cooling screw and water-cooled servo motor to improve the machining accuracy of the feed axis.The whole frame• The rotary table and the B-axis are arranged on different linear axes respectively, the load of the table is larger, and the processing of the vertical-  horizontal conversion of the B-axis is more flexible;• Large column and X-axis three-way design, reduce the weight of moving parts, achieve high dynamic performance and stability, and lower energy consumption;• The basic structure of thermal balance is equipped with hollow cooling screw and water cooling servo motor to achieve the highest constant accuracy.Drive structure and spindle• High-precision ball screw, equipped with precision linear encoder, fixed at both ends of the screw, pre-stretched     structure to ensure processing accuracy;• The XYZ axis adopts the lead screw drive directly connected with the servo motor;• B-axis adopts gear transmission, vertical-to-horizontal conversion structure with double gears for anti-backlash; C-axis adopts DD direct drive motor, the maximum speed is 500rpm, which can realize turning function;• The whole machine adopts precision roller guide rails, which has a higher bearing capacity;• HSK-A100 interface imported motor spindle, optional Marposs machine tool collision monitoring system.Lubrication system•Motor spindle: long-term grease lubrication;• Ball screw: central micro-lubrication;• Roller linear guide: central micro-lubrication;• B-axis gear transmission system: central micro- lubrication;• C-axis table assembly: long-term grease lubricationCooling system•Standard tool external cooling system,coolant/gas cools the tool through the adjustable nozzle at the front of the spindle head;•A spray system is arranged inside the machine for cooling the machine and flushing chips;•The tool can be equipped with an internal cooling system, and a paper belt filter is requiredChip removal system and chain magazine•The screw chip removal device is located on both sides of the base, and the chips are transported to the scraper chip conveyor at the rear of the machine, then the chips are transported to the side of the machine through the chain plate;•There is a front cooling pump on the chip conveyor for the circulation of cutting fluid;•The chip conveyor has large conveying capacity, low noise, and is equipped with an overload protection device, which is safe and reliable in operation, and can be used for chips and curling chips of various materials;•The translation chain tool magazine, 60 large-capacity tool positions are set,and the manipulator automatically changes the tool. Company ProfileHicent brief introduction:Hicent is Chinese custom high precision CNC machined part manufacturer,CNC machine center distributor.For CNC machined parts cooperation:We are proficient in CNC machining and surface finishing.We provide OEM and ODM service.We can do metal processing as customers' drawing, we also has the ability in mapping and modeling.We have full inspection equipments including CMM. We do full inspection as customers' requirements with reports to ensure quality.We obtained ISO9001.We are the stable metal parts supplier for medical device, aerospace, automotive, pump,jig and fixture, mold,oil, gas and wind industry etc.For CNC machine center:We work as CNC machine center distributor in local Chinese market for many years and this year we start to prom
