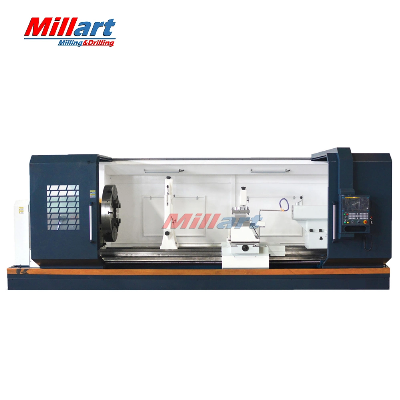

Heavy Duty CNC Turning Machine Ck61100 CNC Horizontal Lathe Machine

Heavy Duty CNC Turning Machine CK61100 CNC Horizontal Lathe MachineFeatures:This is CNC horizontal lathe is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.Specifications:MODELCK61100Max swing over bed1000mmMax swing over tool post 600mmCenter distance3000 mmSpindle hole130mmBed width755mmMax turning length2800mmTaper of spindle 1: 20/140Spindle noseA2-15Spindle speeds4-470rpm (4steps Variable)Distance from spindle center to bed500mmMin X/Z axis feed0.001/0.001X/Z axis rapid speed3000/6000mm/minMax x axis travel 520mmTool numbers on tool-post4Tool post rotation position time2.6 sRepeatability accuracy of tool-post0.01mmTool shank40x40mmTailstock sleeve diameter160mmTailstock sleeve travel300mmTailstock taper Morse 6Workpiece accuracyIT6-IT7Surface roughness of workpieceRa1.6μmMain motor power22KWStandard 4-Jaw chuck diameter1000mmWeight10500kgPacking size6300*2470*2600mmStandard accessories:Fanuc 0i TF controller4 station electric turret4 jaw chuck Manual tailstockMPGIntegrated automatic lubrication systemCoolant systemLighten systemDead centersCenter sleeveOptional accessories:Automatic chip conveyor Steady rest Follow rest   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
