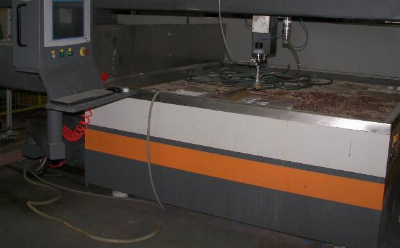

Introductioin 1.structure:5 axis bridge 2.Processing dimension:2500mm*1400mm3.cutting table size:2500mm*1400mm4.stroke:X-2500mm,Y-1400mm,Z-60-80mm,A,B-±10°5.cutting accuracy:±0.15mm6.repeat positioning accuracy: ±0.05mm7.ball-screw and linear guide uses oil-immersed to keep in good repairBridge feature:1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine. 2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change. 3.A full range of cutting capacity, any plane curve cutting. 4.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, the machine runs smoothly, cutting speed, high precision machining. 5.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide. Technical DataProcessing speed0.5~3.5 M / min(depend on the material )Power supply380V, 50 HZInstalled Power40KWWater inlet pressure0.2 ~ 0.4 MpaMax. water discharge3.7 L / minMin./Max. oil discharge (recycling)10 ~ 71 L / minMax. Nozzle diameter0.3/0.33/0.35 mmProcessing thicknessMaterialStainless steelPlastic and foamAluminumGlassCeramicStoneMetalthickness40mm200mm80mm80mm40mm80mm40mmApplication CNC water jet cutting machine can flexibly process (cut off, engrave, make hole, drill) virtually all materials with consistent quality. It has found great application in glass, glass craftetc.. Advantages20 years of R&D experience 6.6 acre production base SGS, CE, ISO certificates OEM waterjet cutting service Globe service office Lower cost Machine PhotoClient Visit PhotoComponents photosFinal Product PhotosContact UsPaul Sales Manager /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
