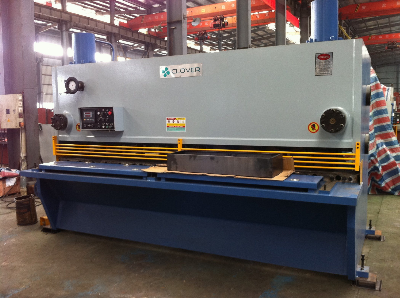

Hydraulic Guillotione Shearing Cutting Machine (CL11Y 4*3200)

Performance: 1. The entire machine is in fully steel welded structure, with stress eliminated by vibration aging technology, typical of excellent righidity and stability. 2. Advanced hydraulic integrated valve block is employed, and the pipeline connection is minimized in a compact structrure, to enhance the system reliability and maintain ability... 3. Oil cylinders in series ensures the shearing angle not to change druing th shearing process of the machine tool. 4. Accumulator return is adjusted with handwheel, in an accurate, rapid and easy way. 5. Blade clearance is adjusted, to minimize the distortion of sheet bar, . 6. The shearing angle is adjustable, to minimize the distortion of sheet bar. 7. Electric rea stopper and position display can be easily and accurately operated. 8. Rolling material support ball is set to minimize fish tail with sheet bar and to reduce frictional resistance. Optional: 1. The adjusted value can be shown on the digital readout (electronic display). 2. Pneumatic sheet support. 3. Any tailer-made are available on request. Model No.Shear Size (TxW) (mm)Shear AnglePlate Strength (n/mm2)Backgauge Range (mm)Strokes (time/min)Main Motor Power (KW)Machine Weight (kg)Shape Size (mm)CL11Y-4×25004x25001°30′≤45020-500165.550003040×1610×1620CL11Y-4×32004x32001°30′≤45020-500135.560003840×1610×1620CL11Y-4×40004x40001°30′≤45020-600105.570004600×1700×1700CL11Y-4×60004x60001°30′≤45020-60057.5160006460×2100×3200CL11Y-6×25006x25001°30′≤45020-500157.560003040×1610×1620CL11Y-6×32006x32001°30′≤45020-500127.570003840×1610×1620CL11Y-6×40006x40001°30′≤45020-60097.583004620×1750×1700CL11Y-6×60006x60001°30′≤45020-800518.5185006480×2100×2300CL11Y-8×25008x25001°30′≤45020-500147.570003040×1700×1700CL11Y-8×32008x32001°30′≤45020-50087.575003860×1700×1700CL11Y-8×40008x40001°30′≤45020-60081185004640×1700×1700CL11Y-8×60008x40001°30′≤45020-800818.5200006480×2100×2350CL11Y-10×250010x25001°30′≤45020-500107.573003040×1700×1700CL11Y-10×320010x32002°≤45020-500107.580003860×1700×1700CL11Y-10×400010x40002°≤45020-6001018.5120504650×2100×2000CL11Y-10×600010x60001°30′≤45020-6001018.5240006500×2100×2300CL11Y-12×250012x25001°40′≤45020-5001218.5110003140×2150×2000CL11Y-12×320012x32001°40′≤45020-5001018.5125003880×2150×2000CL11Y-12×400012x40001°40′≤45020-6001018.5145004680×2150×2000CL11Y-16×250016x25002°≤45020-5001018.5120003140×2150×2000CL11Y-16×320016x32002°≤45020-6001018.5135003880×2150×2000CL11Y-16×400016x40002°30′≤45020-8001018.5160004650×2150×2200CL11Y-20×250020x25002°30′≤45020-500837180003440×2300×2500CL11Y-20×320020x32002°30′≤45020-1000837230004150×2350×2700CL11Y-25×250025x25003°≤45020-1000845250003200×2700×2900CL11Y-25×320025x32003°≤45020-1000537260004200×2500×2600CL11Y-30×250030x25003°≤45020-1000440280003300×2900×3000CL11Y-30×320030x32003°30′≤45020-1000440340004200×2500×2600CL11Y-40×250040x25004°≤45020-1000375460003200×3300×3200CL11Y-40×320040x32004°≤45020-1000390580004300×3300×3000  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
