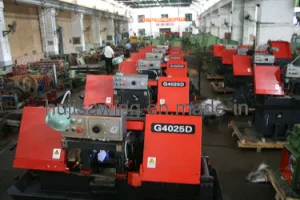

Horizontal Bandsaw Machine (G4025D)

Basic Info.Model NO.G4025DTrademarkHJOriginChinaProduct Description The semi-automatic G4025D is mainly used for cutting ferrous and non-ferrous metals. Due to their simple compact structure, reliable performance and high precision, they are the ideal equipment for metal cutting in medium and small quantity.Main characteristics:Hydraulically-controlled feed speed can be adjusted infinitely.The back pressure restrict the Max. Feed pressure.The blade is easy to assembly and tension, also convenient to maintain.The saw bow of makes an angle? Of 600? with the table surface.Htdraulically-controlled clampingh and loosing workpiece.Both bearings and carbides guide blade to prolong the life of the blade.Manually operated material feeding is quick convenient.SpecificationsCutting capacity (dia): 250mmBlade size ( W * T * L): 27*0.9*3420mmFloor to vise way: 700mmBlade speeds: 30.45.60.70m/minFeed speed: Infinitely variableMain motor power: 2.2kwHydraulic motor power: 0.75kwCoolant motor power: 0.04kwCapacity of oil tank: 43LCapacity of Coolant tank: 24LTable capacity: 500kgOverall size ( L * W * H): 1866*775*1235mmNet Weight: 660kg
