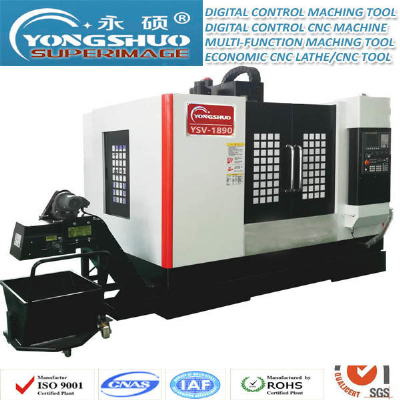

1890 CNC Milling Machines/1890 Vertical CNC Machine Center

1890 CNC Milling Machine1890 Vertical CNC Milling Machine1890 CNC Machining Tool1890 CNC Machine Center1890 CNC Lathe1890 Digital Control Machine ToolCNC Machining CenterCNC Machining Tool Digital Control CNC LatheDigital Control CNC Maching Tools:For cuttingFor millingFor drillingFor engravingFor turning....Multi-functionHigh efficiency, High Quality, High Hardness, High StabilityLow cost, Low noise, Low consumable, Less moneyYongshuo CNC Machine Center:liHigh Precision, High Rigidity, High Stability, High Efficiency, Long Use Life.Linear rail CNC maching Center usually refers to the rolling guide, which is often used in the linear module of the machine tool industry. We usually call this type of component a "linear guide". The linear guide itself is divided into two parts: slide rail and slider. There are internal rollers or rollers in the slide block, and the length of the slide rail can be customized. It is a modular component, a standarized series of separate products produced by a specialized manufacturer, which can be installed on a machine tool and can be disassembled and replaced after wear. Many machine tools in the field of precision machining mostly use high precision wire rail as machine tool guide, which also greatly guarantees the machining accuracy of machine tools.The line rail CNC Machine Center is precompressed to achieve zero clearance between the tracks, with high accuracy. In terms of service life, the line rail is much higher than the hard rail.The cutting force of the line rail is smaller than the hard rail, but for the hard rail, the line rails of many machine tools have greatly improved their carrying capacity.The application of wire rail is suitable for high speed machine, high speed cutting, suitable for processing products and small precision moulds. Today, more precision machining centers use wire rails.Main Application Areas: Automobile manufacturing, spare parts processing;Toy industry, parts processing and moldingHardware and mechanical parts processing and rapid prototypingSpare parts processing and rapid prototyping for electronic and electrical industryRapid prototyping and processing of building materials, ceramics and hardware industryMain Machined Parts: General typeLight industryAviation IndustryBoating IndustryMetallurgyInstruments and ApparatusElectric applianceStainless Steel ProductsSteel structure buildingArchitectural decorationCarpentryPlasticAluminium partsAll general-purpose machine partsMain Parameters Specification List:CNC Milling Machines. (Vertical CNC Machine Center)TECHNICAL DATAYSV1890CNC Controller System FANUC or MITSUBISHI or SIEMENSWorkbench Size(MM)2000*900Process Distance In X-axis(MM)1800Process Distance In Y-axis(MM)900Process Distance In Z-axis(MM)800Worktable to Spindle Nose(MM)160-960Spindle Center to Column Spacing960Max. Loading Weight(KG)1600T-Groove Width/Spacing(MM)2-22*165Range of Spindle Speed(RPM)Continuously viable8000/1000012000Direct connectionSpindle TaperBT50Moving Speed(M/MIN)20/20/15Cutting Feed Speed(M/MIN)8Repeated Position Accuracy (300mm)±0.003XYZ-axis Ball Screw Specification5512X-axis Linear GuideSpecification(MM)45Six-sliderY-axis Linear GuideSpecification(MM)45Four-railz-axis Linear GuideSpecification(MM)55Six-sliderPrincipal Axis Motor(KW)18.5/22Tool Capacity24Floor Space(M)4.5*3.2*3.3Weight(T)13.3* Note: 4-Axis Rotary Tables & 5-Axis Rotary Tables and matching system can be configurated as per the request of the users. Wecome to visit our factory in shanghai. YoungShuo-SuperImage offers professional training for users and distributors. The distributors all over the world are wanted. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
