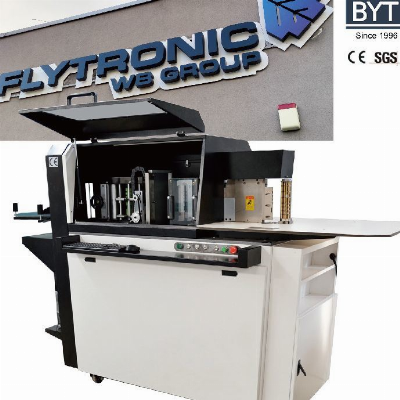

Bytcnc Semi-Automatic Channel Letter Bender Machine Multifunctional

Product Description BYTCNC Semi-automatic channel letter bender machine multifunctional Technical parameter     Channel letter bending machine parameter   Model   BWZ-C1   Working Principle   High precision automatic feeding,trimming,notching and bending   Processing Materials   Flat Stainless steel ,Aluminum profile ,Iron &Copper plat and Floding Aluminum profile   Material Width   10-160mm   Material Thickness   Aluminum profile 0.3-1.5mmStainless steel 0.3-1.2mm    File format   AI/DXF   Mini pat radius   R≥3.5MM   Mini extrusion Radius   R≥7 MM   Peak Power   2000W   Length Accuracy   0.1mm/meter   Feeding Torque   >45Nm   Planer Slotted Torque Peak   >30Nm   Arc Bending Torque Peak   >100Nm   Working Pressure   0.3-0.6mpa   Voltage   220V 50HZ 1P   Overall Dimensions   2680*880*1590mm   N.Weight   500kg     Product advantage1. Quality GuaranteeWhole machine guarantee 2 years , the motor guarantee 3 years2.Processing materialWidth: 10-160mm,  Thickness : Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm3.Machining parts 1All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.4.Machining parts 2In the overall structure the working platform use 14mm whole plate deal with three times plain grinding finish ,the internal workpiece thickness 17mm,ensures the long-term working stability and accuracy5.Length closed-loop control systemThe software have Length closed-loop control system ,the length precision ≤0.1mm.  Meantime Independent development software system , which can updated according customer need and more easy to use .  6.voltage digital display deviceThe motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable .7.Whole machine weight meet 530kgs and more stable.   Feeding 1.The feeding roller diameter 45mm and install encoder, the precision and speed is similar as manipulator .2.Install return material control device which ensure the returned material precision. 3. The guide roll diameter 60mm and ensure the material more straight when feeding.Aluminum notching1.Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle.2.Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small.3.Use four-column design ensure the cutting stable and effect.Stainless steel Notching1.Planer have current induction automatic knife adjustment, very easy finish cutting depth through software ,more precision than manual adjust.2.Double Japan Fuji Servo motor and driver for cutting and bending , 20mm leading screw, more fast ,stable and high precision . One set bender can service 6sets laser welding working.3.The Planner cutter use carbide blade, each blade have 8 sides,every side can working about 7000 times ,the use cost is very lower and cutting effect is beautiful .Sample showing   Company ProfilesAfter-Sales Service1.Two years quality guaranty. The machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period. 2. Lifetime maintenance free of charge. 3. Free training course at our plant. 4. We will provide the consumable parts at an agency price when you need replacement. 5.Engineers speaking English12 hours on line serviceeach day, free technical support. Wewill solve your problemsimmediately by E-mail, fax, MSN, Skype, or telephone. 6. The English operation manual in electronic edition is included. 7. Machine has been adjusted before delivery. 8.Yuantong century is constructing oversea technical support center network, you cancontact us to find your nearest support center.FAQ:  1) This is the first time I use this kind of machine, is it easy to operate?There are english manual or guide video that show how to use machine.If there is still have any question, we can talk from phone or skype. 2) If machine has any problem after I ordered it, how could I do?Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours  3) MOQ ?Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
