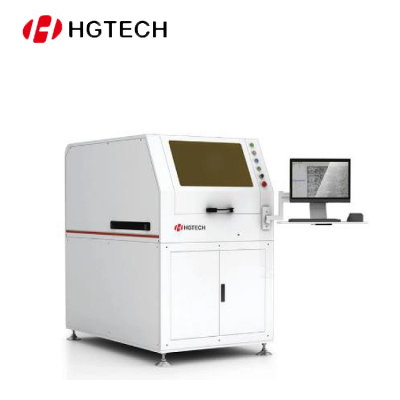

High Quality Multi-Station50W Raycus PCB Keyboard Fiber Laser Printing Marking Machine

  PCB Laser Marking MachineProduct DescriptionThe self-developed software can directly connecting information system of our customer. Marking input information can not only generated automatically by software, but also be received through network. It can be integrated with SMT online operation and automatic off-board workstation.Comparing with label and printing, laser marking can record PCB information by marking serial number and barcode for quality control of electronic product. PCB Laser Marking Machines in  different types are suitable for PCB marking of large area and  irregular shape board or thin plate as well as multi-marking on one-side or multi-board in high efficiency and speed.Applicable to SMT production line,offlinelonline mode can be selected according to needs, automaticlaser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of SMT enterprisesin the production process can be realized.FeatureEquipment characteristics(1)Selection of world-class lasers with good beam quality,small heat affected area andhigh degree of refinement (2)The coding function can support various general types of one-dimensional codes andtwo-dimensional codes, and can realize self-built online ratings, with a code reading rateof over 99.9% (3)Self-developed puzzle software, friendly interface and easy to operate (4)There are multiple processing methods suchas single head/double head and double trackfor flexible selection (5)Can be connected to MES system to realizedata intercommunication and data anti-duplication functions Product advantage1. High-performance CO2 / Fiber laser has high-quality laser beam, small focusing spots and well-distributed power. 2. The high-pixel CCD camera makes automatic positioning, identification and feedback reporting come true.3. Gantry structure and synchronous transmission guideways ensure the stable and precision performance.4. The function of automatic focusing and track width adjusting are designed to match up different production line.5.Work offline or online by cooperating with upper and lower board equipment;6.Multi-board and multi-position marking by X/Y servo Module ;7.Front and back marking to increase work efficiency Product Parameters   LCA10/30C-S3LCA10/30C-S5LCB10/30C-S5LCB10/30C-D5 laser sourceCO2/FiberCO2/FiberCO2/FiberCO2/FiberLaserlaser wave length 10600nm/1064nm10600nm/1064nm10600nm/1064nm10600nm/1064nmOutput Power 30±0.5W10±0.5W10±0.5W30±0.5WProcessability processing area300mm*300mm500mm×500mm500mm×500mm500mm×500mm Repositioning resolution±0.1mm±0.1mm±0.1mm±0.1mmMin. Line Width
