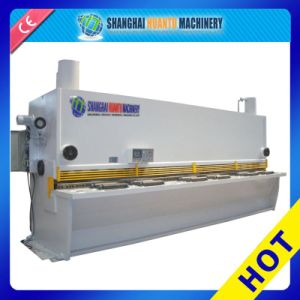

Sheet Metal Guillotine Shear Sheet Metal Cutting Machine

Basic Info.Model NO.QC11Y, QC12YAutomation Automatic CertificationCE, ISO 9001:2000, ISO 9001:2008, EPA, CS, RoHSCondition New Warranty2 YearsHydraulic SystemRexrothElectronic SystemSiemens/SynderMain MotorSiemensSeal RingValquaCertificateCe,ISOMachine ColorCustomer PointedMachine TypeSteel Shearing Hydraulic MachineTrademarkShanghai Huantu MachineryTransport PackageWooden BoxSpecificationCE and ISO certificateOriginShanghai ChinaHS Code8462399000Product Description sheet metal guillotine shear sheet metal cutting machineCharacter1. Guillotine beam design2. Integration hydraulic system3. Motorized back gauge with digital show4. Manually blade clearance adjustment5. Variable shearing angle to reduce the deformation of the shearing piece6. Upper knife carrier with inward structure, its facilitate to feed the material7. Time delay relay controlling stroke, can be sheared in section8. Counter controlling the number of shearing9. Standard front extensive arms10. Four cutting edges blade to prolong working life, 6CrW2Si11. Foot pedal with emergency stop12. Steel welded construction, vibration to eliminate inner stress, High in rigidity, so the structure is very sturdy and durableMajor Elements:1. Hydraulic system: Omega, USA/ Atos, Italy2. Electro parts: Siemens, Germany/Schneider, France3. Motors: Siemens, Germany4. Sealings: Valqua from Japan or DZ from Taiwan.5. Blades: From Shanghai, 4 sides' blades6. Standard: CE and ISO certificate7. Operation system: NC E10 by Estun8. Option: CNC DELEM DAC310 DAC3609. Colors: According to your requirements.sheet metal guillotine shear sheet metal cutting machineMODEL4×25004×32006×25006×32006×40006×60008×3200Max.cutting thickness4466668Tensile strength of sheet metal450450450450450450450Max cutting length2500320025003200400060003200Shear angle1°301°301°301°301°301°301°30Max back gauge device600600600600600600600Power of main motor(kw)5.57.57.57.57.51115Overall dimensionsL(mm)3085384031303840463064003880W(mm)1440161015301810209527501810H(mm)1550162016001620170022001620Weight of machine(Kg)38006580500068009620210008320MODEL12×250012×320012×400016×250016×320016×400020×4000Max.cutting thickness12121216161620Tensile strength of sheet metal450450450450450450450Max cutting length2500320040002500320040004000Shear angle1°501°501°502°2°2°2°30Max back gauge device800800800800800800800Power of main motor(kw)18.518.518.522222230Overall dimensionsL(mm)3245395047653300405048504890W(mm)2210227023702440244024403000H(mm)2005200520052400205023002910Weight of machine(Kg)9600120001327011500140001850026600
