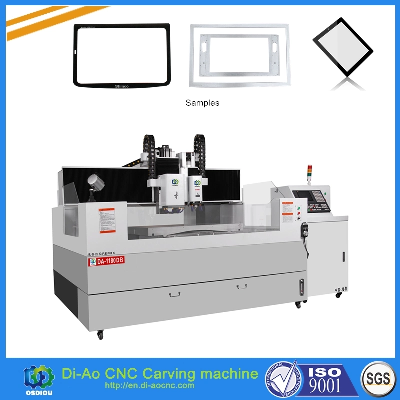

Large CNC Cutting Machine for Acrylic, Metal and No-Metal

Large CNC Cutting Machine for Acrylic, Metal And No-metal  Application of large precision carving machine: Precision special-shaped edge grinding, punching, chamfering, etc for large display window panel, capacitive glass panel, resistance glass panel, touch glass panel, and various kinds of glass panelFeatures: 1) The machine body is made of superior "Jinan green" marble. The machine weight is up to 4500KG. The machine structure is stable and permanent without deformation; It can ensure the persistent accuracy. 2) With imported screw and guide rail, NSK P4 bearing; 3) Professional design of waterproof and structure of machine tools; 4) Electronic control design of waterproof type; 5) Numerical control system with high stability; 6) Automatic lubrication system; 7) The practical, fast and convenient pneumatic jigs and product positioning jigs are equipped. 8) Innovative cooling design to improve tool cooling efficiency and yield. 9) Humanization design of automatic alarm; CNC Machine Specifications1ITEM/MODELDA-1180SDBDA-1150FB2Processing MaterialsAluminum and copper highlightsLarge size optical glass3WORKING TABLE  4Table shapeT- type groove5Table size1100×800mm6Max load capacity200kg7MOVEMENT & RANGE  8Single head processing1100×800mm×200mm9Double spindle center distance-10Spindle nose to worktable height180mm11ACCURACY    12Positioning accuracy0.008/300mm13Repeatability accuracy0.005mm14SPINDLE  15Spindle power0.8/1.2/2.2/3.3 Kw(Optional)16Spindle speed24000/36000/60000/100000 rpm(Optional)17Cutters change methodPneumatic(Or manual)18Cutters specificationΦ10/Φ6/Φ4/Φ3.17519FEEDING SPEED  20Rapid traverse18m/min21Cutting feed rate9m/min22REQUIRED POWER  23Total Power7.5Kw24Machine weight2300kg25Machine size2340*1770*1520mm26      27Other Standard Parts    28Water injection systemRing water injector29Filter4 PCS30Oil drainVolumetric oil drain31Oil pumpAutomatic alarm oil pump32      33CNC System Specifications    34System languageChinese/English35Motion AxisWeihong /Ncstudio/Di-ao/Syntec/Qiezhi/LNC36Minimum moving unit0.001mm37Motion Axis4 Axes/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
